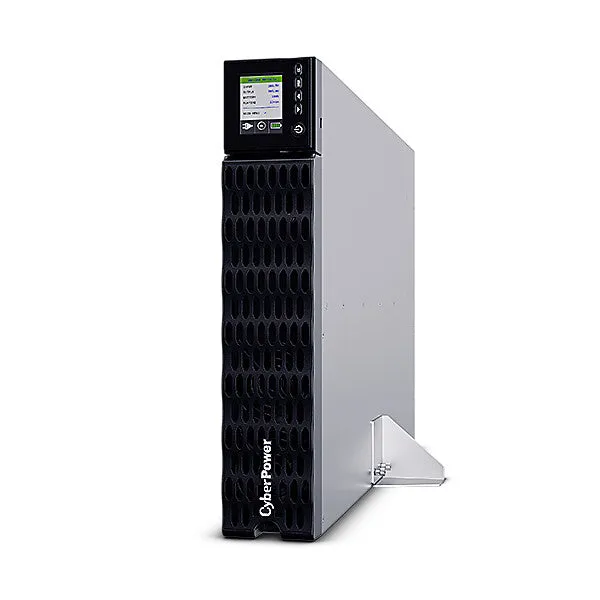

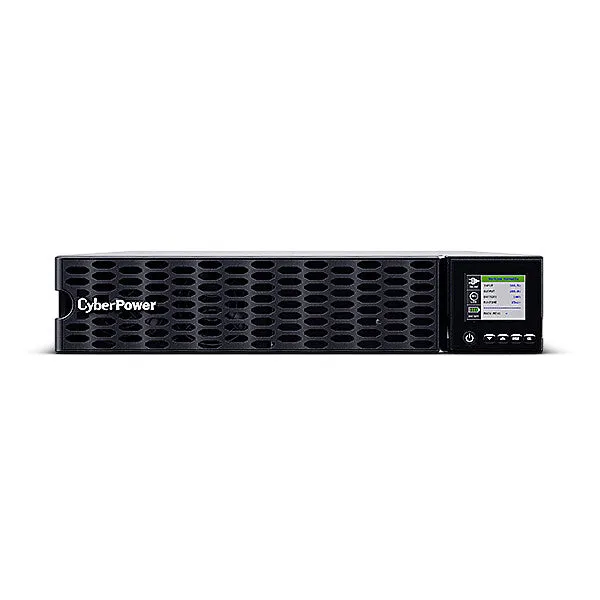

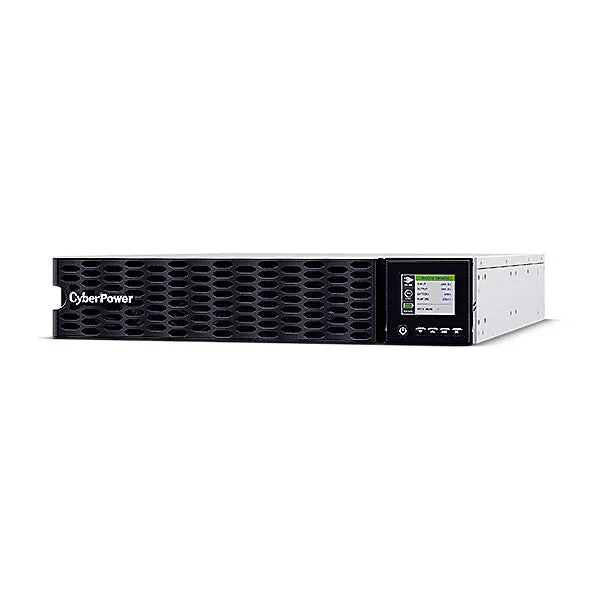

CyberPower OL6KERTHD uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W 7 AC outlet(s)
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Pure sine
- 7 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Rackmount/Tower Black, Grey
OL6KERTHD
CyberPower OL6KERTHD guarantees power backup protection for IT equipment, servers, workstations, NAS/Storage devices, telecom devices, networking devices, security/emergency systems, and surveillance systems. The UPS adopts double-conversion topology to provide high-quality power output in a compact design. This generator-compatible UPS features hot-swappable battery packs for maintenance without power interruption, and comes with additional ECO Mode to conserve power and save on energy costs. The UPS can employ Extended Battery Modules (EBM) to prolong runtimes, and adopts patented Battery Management Technology to balance battery string voltage for optimal battery lifespan. This model also features tiltable color LCD panel that allows users to monitor key power and battery information at a glance. The PowerPanel Power Management Software allows user to perform real-time monitoring and remote management of the UPS.
| Features |
| Audible alarm modes |
Alarm when on battery, Battery replacement, Fault, Low battery alarm, Overload alarm |
| Audible alarm(s) |
Yes |
| Power protection features |
Overload |
| Surge protection |
Yes |
| EMI/RFI noise filtering |
Yes |
| Total Harmonic Distortion (THD) (non-linear load) |
5% |
| Total Harmonic Distortion (THD) (linear load) |
3% |
| Emergency Power Off (EPO) |
Yes |
| ECO mode |
Yes |
| Crest factor |
3:1 |
| Output power factor |
1 |
| Input power factor |
0.99 |
| Efficiency (ECO mode) |
97% |
| Heat dissipation |
1613 BTU/h |
| Response time |
0 ms |
| Surge energy rating |
2430 J |
| Maximum current |
32 A |
| Output frequency |
50/60 Hz |
| Output operation voltage (max) |
240 V |
| Output operation voltage (min) |
200 V |
| Input frequency |
50/60 Hz |
| Input operation voltage (max) |
240 V |
| Input operation voltage (min) |
200 V |
| Waveform |
Pure sine |
| Output power |
6000 W |
| Output power capacity |
6 kVA |
| UPS topology |
Double-conversion (Online) |
| Ports & interfaces |
| Emergency Power Off (EPO) connector |
Yes |
| RS-232 ports |
1 |
| Serial ports quantity |
1 |
| Serial interface type |
RS-232 |
| Serial interface |
Yes |
| USB 2.0 ports quantity |
1 |
| USB port |
Yes |
| AC outlets quantity |
7 AC outlet(s) |
| Power plug |
Terminal |
| AC outlet types |
C13 coupler, C19 coupler, Terminal |
| Battery |
| Hot-swap battery |
Yes |
| Battery recharge time |
4 h |
| Typical backup time at half load |
6.2 min |
| Typical backup time at full load |
2.4 min |
| Battery technology |
Sealed Lead Acid (VRLA) |
| Design |
| LED indicators |
Yes |
| Display type |
LCD |
| Control type |
Buttons |
| Rack capacity |
2U |
| Housing material |
Metal |
| Product colour |
Black, Grey |
| Form factor |
Rackmount/Tower |
| Operational conditions |
| Non-operating altitude |
0 – 4500 m |
| Operating altitude |
0 – 3000 m |
| Storage relative humidity (H-H) |
0 – 95% |
| Operating relative humidity (H-H) |
0 – 90% |
| Storage temperature (T-T) |
-5 – 45 °C |
| Operating temperature (T-T) |
0 – 40 °C |
| Sustainability |
| Sustainability compliance |
Yes |
| Sustainability certificates |
ENERGY STAR |
| Packaging content |
| Manual |
Yes |
| Cables included |
Serial, USB cable |
| Certificates |
| Certification |
CE, EAC, RCM |
| Compliance certificates |
CE, EAC, RCM, RoHS |
| Weight & dimensions |
| Weight |
42 kg |
| Height |
86.5 mm |
| Depth |
720 mm |
| Width |
433 mm |
| Packaging data |
| Package weight |
53 kg |
| Package height |
335 mm |
| Package depth |
1100 mm |
| Package width |
600 mm |
| Logistics data |
| Country of origin |
China |
| Harmonized System (HS) code |
8504408690 |
| Other features |
| Battery type |
RBP0144 |
