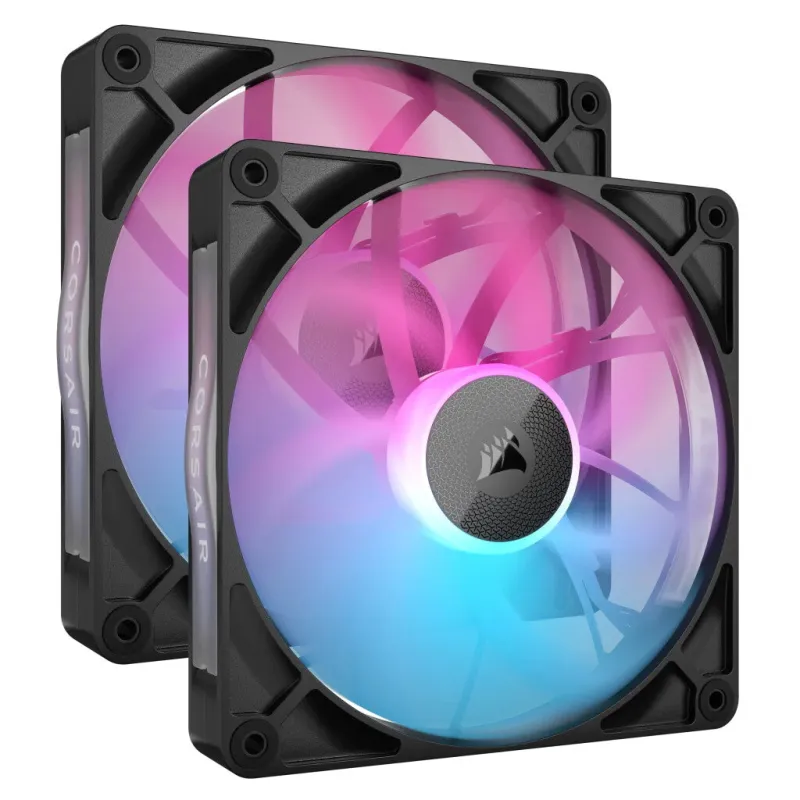

Corsair iCUE LINK RX140 RGB Computer case Fan 14 cm Black 2 pc(s)
- Advanced performance blade shape

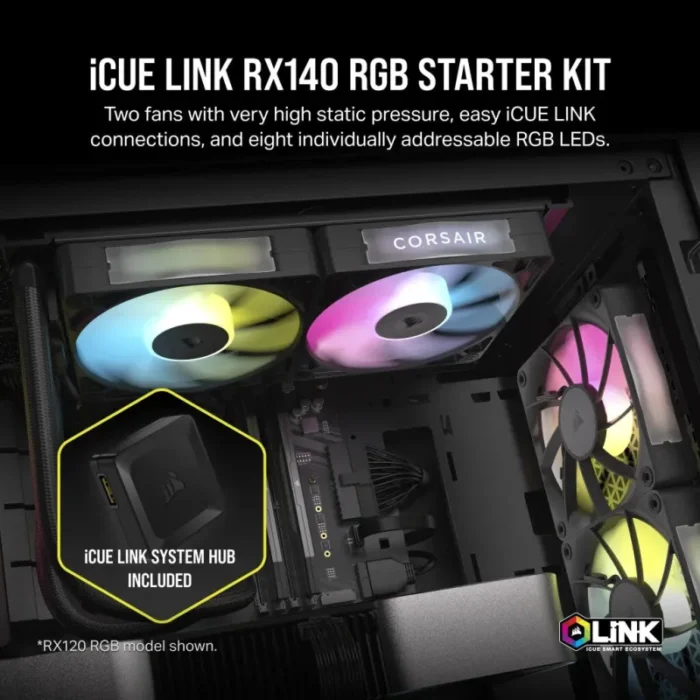

- Requires iCUE LINK System Hub (included with RX Starter Kits)
- AirGuide technology for concentrated cooling
- Magnetic dome bearing for minimal noise
CORSAIR RX120 RGB PWM fans deliver cooling performance by pushing high airflow through obstructions with high static pressure and CORSAIR AirGuide technology.
WHAT IS iCUE LINK?
BUILD BETTER. BUILD SMARTER.
THE EASY WAY TO BUILD A PC
Reduce cable clutter with a network of smart, interconnected components.
LINK YOUR COMPONENTS

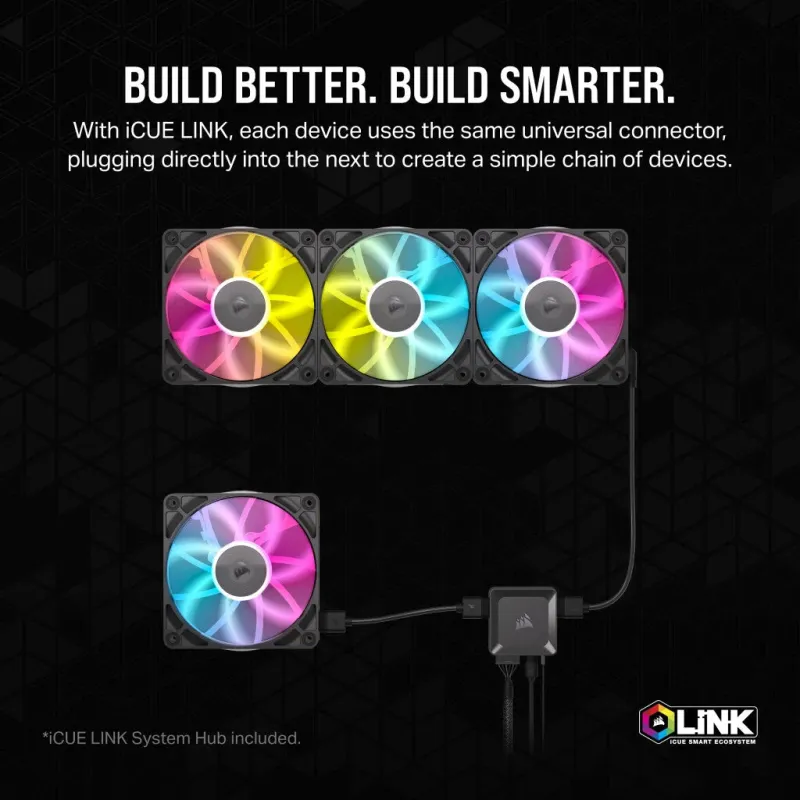

The iCUE LINK ecosystem uses a single connector for all iCUE LINK devices.
UNITE YOUR SETUP
Each component connects directly to the next, creating a chain of devices.
PERFORMANCE WHERE IT MATTERS
PEAK COOLING POWER
Push airflow through cases and radiators like never before at low, medium, and high speeds. RX Series fans deliver high airflow and static pressure, while keeping noise as low as possible.
AIRFLOW AND STATIC PRESSURE
A better fan relies on several key features, each improving how it handles air pressure and airflow as a radiator or case fan. RX fans were engineered to excel at both.
BLADE SHAPE
Optimized angle of attack, airfoil shape, and edge curvature ensure maximum airflow efficiency
FAN HOUSING
The fan housing was designed to support the largest possible blade radius within its size limit.
CORSAIR AIRGUIDE
Stator vanes are angled to focus the exhaust airflow cone and improve the coverage of radiator fins and heat dissipation.
EVERY SOURCE OF NOISE ADDRESSED
CORSAIR MAGNETIC DOME BEARING
This improved bearing minimizes friction and mechanical noise, achieving a balance between high airflow performance and low acoustic footprint. On top of that, the reduced friction means greater longevity for your fan.
DESIGNED FOR REAL LIFE PERFORMANCE
RIGOROUSLY TESTED AND PERFECTED
Months of material and design optimization, along with meticulous testing, led to the RX Series’ unbeatable performance in delivering high static pressure and efficient airflow. These tests ensure that the fan performs exceptionally across a wide range of speeds.
Read more about how radiator fan performance is actually measured, what the specifications mean in practice and what separates good fans from great fans.
REMOVING AGE-OLD ANNOYANCES
QUIKTURN SCREW REVOLUTION
Take CORSAIR’s QuikTurn screws for a single spin and see how convenient fan installation can be: as robust and secure as any traditional screw, and an absolute pleasure to use. Especially when you need to use 20 or more in a build.
HARNESS THE POWER OF ICUE LINK
Unleash the full potential of your fans using CORSAIR iCUE software, from fine-tuned fan speeds to pre-set fan curves.
| Performance | |
|---|---|
| Fan static pressure | 3.75 mmH2O |
| Quantity per pack | 2 pc(s) |
| Bearing type | Magnetic levitation bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum airflow | 94.7 cfm |
| Minimum airflow (imperial) | 17.9 cfm |
| Noise level (high speed) | 36 dB |
| Noise level (low speed) | 10 dB |
| Rotational speed (max) | 1700 RPM |
| Rotational speed (min) | 300 RPM |
| Fan diameter | 14 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Illumination colour | Multi |
| Illumination LED | Yes |
| Number of fans | 2 fan(s) |
| Product colour | Black |
| Power | |
|---|---|
| Fan current | 0.7 A |
| Weight & dimensions | |
|---|---|
| Fan dimensions (W x D x H) | 140 x 140 x 25 mm |
| Weight | 57 g |
| Technical details | |
|---|---|
| Warranty period | 5 year(s) |
| Packaging content | |
|---|---|
| Number of screws | 20 |
| Screws included | Yes |
| Package type | Box |
