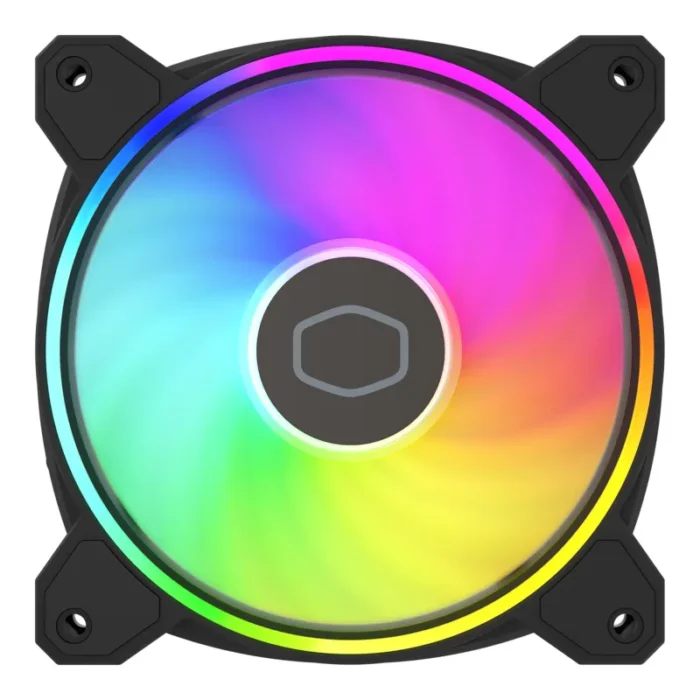

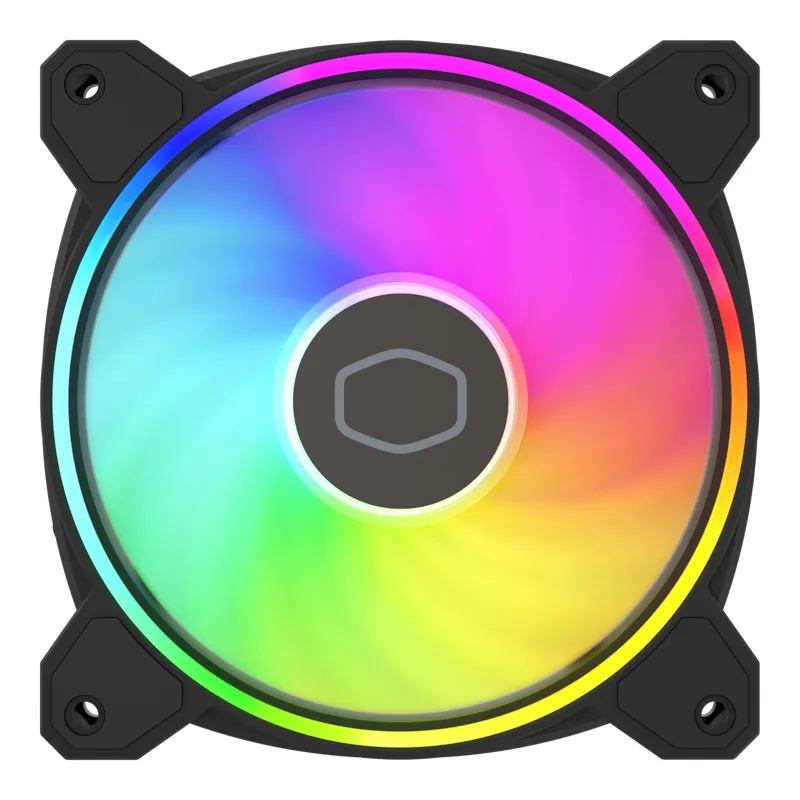

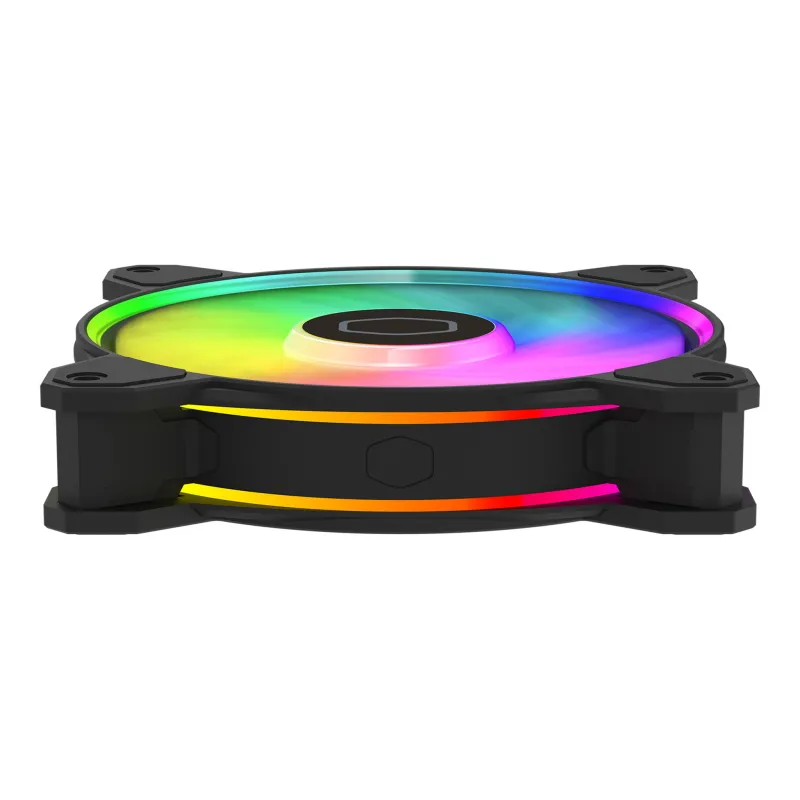

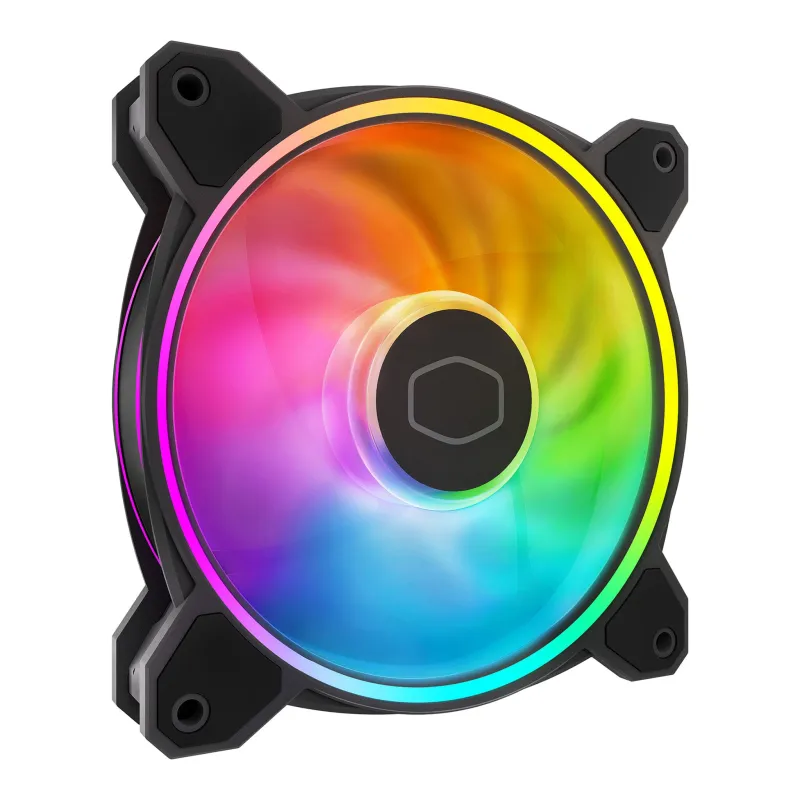

Cooler Master MasterFan MF120 HALO² Computer case Fan 12 cm Black 1 pc(s)
- Larger Fan Blades
- Hybrid Frame Design
- Dual Loop ARGB LED Rings
- Improved Fan Controller IC
Bring On The Light
Vibrant Addressable Gen 2 RGB
Larger LED rings increase lighting by 50% for even more vibrant lighting.
Hybrid Frame Design
Redesigned frame structure and corner dampers maintain stability without sacrificing fan blade area for better performance.
Larger Fan Blades
Air Balance fan blades increased by 10% in size deliver stronger air flow and cooling performance.
Improved Cooling Performance
Fine tuned P-Q Curve increase air flow and pressure while being even more quiet than its predecessor.
MULTIPLE SIZE AND COLOR OPTIONS
Available in both 120mm and 140mm sizes, as well as in black and white color options.
| Performance | |
|---|---|
| Fan’s mean time to failure (MTTF) | 160000 h |
| Quantity per pack | 1 pc(s) |
| Fan noise level (max) | 27 dB |
| Bearing type | Rifle bearing |
| Pulse-width modulation (PWM) support | Yes |
| Maximum air pressure | 2.89 mmH2O |
| Maximum airflow | 51.88 cfm |
| Rotational speed (max) | 2050 RPM |
| Rotational speed (min) | 0 RPM |
| Fan diameter | 12 cm |
| Type | Fan |
| Suitable location | Computer case |
| Design | |
|---|---|
| Fan connector | 4-pin |
| Illumination colour | Multi |
| LED connector type | 3-pin |
| Illumination LED | Yes |
| Product colour | Black |
| Power | |
|---|---|
| Safety current | 0.37 Ah |
| LED voltage | 5 V |
| Rated current | 0.14 A |
| Rated voltage | 12 V |
| Power consumption (typical) | 1.68 W |
| Weight & dimensions | |
|---|---|
| Package weight | 250 g |
| Package height | 178 mm |
| Package depth | 130 mm |
| Package width | 28 mm |
| Fan weight | 174 g |
| Fan dimensions (W x D x H) | 120 x 120 x 25 mm |
| General | |
|---|---|
| Product family | MasterFan |
| Logistics data | |
|---|---|
| Products per master (outer) case | 20 pc(s) |
| Master (outer) case height | 155 mm |
| Master (outer) case length | 370 mm |
| Master (outer) case width | 330 mm |
