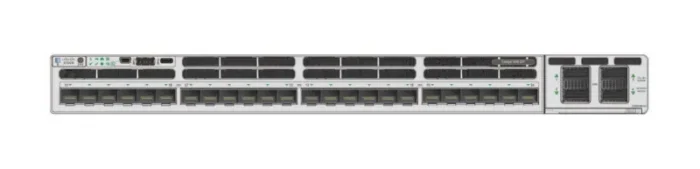

Cisco 9300X Managed L3 1U
- Managed L3
- Quality of Service (QoS) support Configuring Location Settings (CLI)
- 10G support
- MAC address table: 32000 entries Switching capacity: 1000 Gbit/s
- Access Control List (ACL)
- 1U Rack mounting Stackable
- AC
Built to reimagine connection, reinforce security and redefine experience
Cisco Catalyst 9300 Series switches are Cisco’s lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are build to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small.
| Management features |
| MIB support |
Y |
| ARP inspection |
Yes |
| Configuring Location Settings (CLI) |
Yes |
| Quality of Service (QoS) support |
Yes |
| Switch layer |
L3 |
| Switch type |
Managed |
| Ports & interfaces |
| Installed SFP modules quantity |
24 |
| Network |
| VLAN support |
Yes |
| Full duplex |
Yes |
| 10G support |
Yes |
| Networking standards |
IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x |
| Data transmission |
| Packet buffer memory |
32 MB |
| Jumbo frames |
9198 |
| Jumbo frames support |
Yes |
| Static route |
Yes |
| Forwarding rate |
1488 Mpps |
| Switching capacity |
1000 Gbit/s |
| MAC address table |
32000 entries |
| Security |
| IGMP snooping |
Yes |
| Access Control List (ACL) |
Yes |
| Multicast features |
| Multicast support |
Yes |
| Design |
| LED indicators |
Yes |
| Form factor |
1U |
| Stackable |
Yes |
| Rack mounting |
Yes |
| Performance |
| Flash memory |
16000 MB |
| Internal memory |
16000 MB |
| Power |
| AC input frequency |
50/60 Hz |
| AC input voltage |
100 – 240 V |
| Power source |
AC |
| Power over Ethernet (PoE) |
| Power over Ethernet (PoE) |
No |
| Operational conditions |
| Operating relative humidity (H-H) |
5 – 90% |
| Storage temperature (T-T) |
-40 – 70 °C |
| Operating temperature (T-T) |
-5 – 45 °C |
