Chesney Alchemy Linear Ribbon Burner RB700
The Chesney’s Bioethanol collection includes a range of linear ribbon burners, a perfect feature for a contemporary interior.
The Alchemy Bioethanol collection also includes linear ribbon burners in three sizes. These are a perfect design feature for a contemporary interior and can be installed in a number of ways.
The three units measure 700mm, 1000mm and 1500mm in length and all produce mesmerising flame patterns.

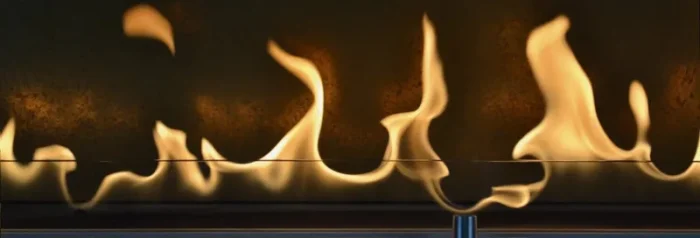

Each burner is supplied with an anti-reflective glass upstand anchored to the top plate, which protects the ribbon flame pattern from disruption caused by draughts. The unique ‘v’ shaped aperture to the flame channel also creates an extremely robust flame that is especially resistant to movement in the air around it. These burners are very efficient to run, as demonstrated by the performance of the mid-sized RB1000, which will run on economy flame rating for 12 hours before re-filling is required.

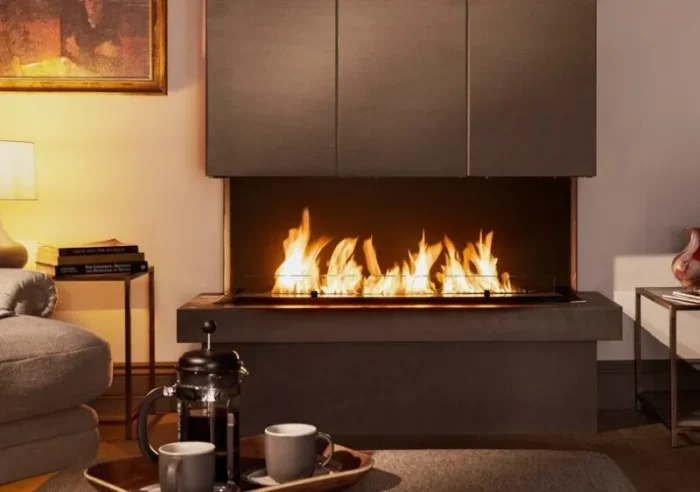

Each model can be installed as a freestanding fire that is open to the room from all four sides, or less, as required. Alternatively, an Alchemy linear burner can be installed as an inset fire.
Alchemy have taken the performance and use of bioethanol to a new level. Unique features include a patented combustion process that produces a burn time of up to 10 hours with no need to re-fuel and approval for installation in rooms much smaller than those required for competing ethanol products.
RB700 & RB1000 FIREBOXES Alchemy have designed two pre-fabricated inset metal fireboxes to accomodate the RB700 and RB1000 models. These boxes are available with a plain matching trim.
BIOETHANOL FIRE RB700 RB1000 RB1500: Gross Output on High 6.5kW 9kW 12kW Ethanol Consumption on High (Litres per hour) 1L 1.4L 1.9L Gross Output on Low 2kW 3kW 4kW Ethanol Consumption on Low (Litres per hour) 0.5L 0.7L 1L Fuel Tank Volume Capacity 5L 8.5L 13.5L Minimum room size 35 cu.m. 45 cu.m. 55 cu. m. High Setting Tank capacity in litres RB700: 5L = 5 hours total burn time RB1000: 8.5L = 6.07 hours total burn time RB1500: 13.5L = 7.1 hours total burn time Low Setting Tank capacity in litres RB700: 5L = 10 hours total burn time RB1000: 8.5L = 12.14 hours total burn time RB1500: 13.5L = 13.5 hours total burn time
