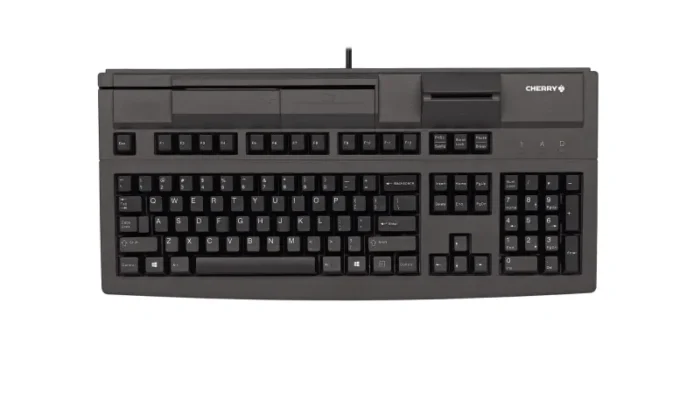

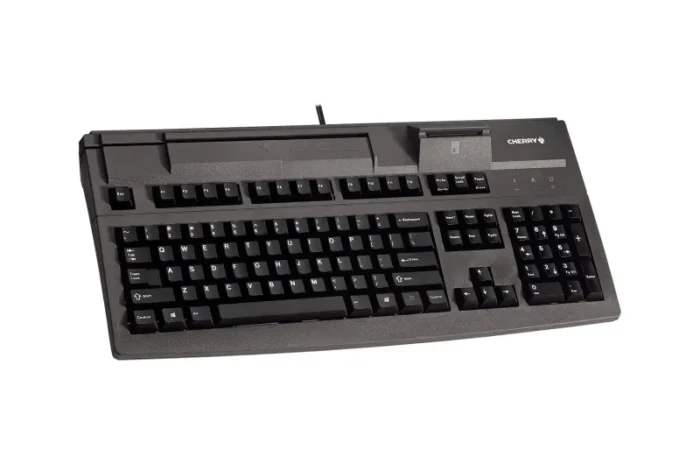

CHERRY MultiBoard MX V2 G80-8044 keyboard Universal USB QWERTZ German Black
- Individual keys with Gold Crosspoint contacts (MX technology)
- Designed for continuous usage – over 50 mill. confirmations per key
- Robust and reliable
- Fully programmable USB 2.0 keyboard
- PC/SC chip card terminal with high-quality landing contacts
- 3-Track Magnetic Stripe Reader
- Programming type can be selected: physically (internal memory) or via software macros using ‘Cherry Tools’ software
- Statistics provided via WMI
- UPOS for Windows® and Linux; client-server architectures supported
- Efficient configuration with professional Cherry Tools Software
- On request: integrated USB hub with high-power downstream ports (500mA, self-powered, high-speed)
- 3-track reader
- Data transfer via USB HID as keyboard scan codes (keyboard emulation; pre-setting) or optionally as raw data
- Freely-programmable header and terminator per magnetic card track
- Adjustable transmission of the start and end characters (sentinels)
- Filtering and replacement of card data
- Increased security during card processing due to the programming of extended hex codes
- Acoustic signal which can be activated following successful or unsuccessful reading of the magnetic card, signal duration can be set
- Freely-selectable output sequence of the tracks
- Optional output of LRC bytes
- Programming and output of ALT sequences
Why not determine the rules on your keyboard yourself and decide just how much independence and comfort you want! Our V2-USB keyboard models are completely programmable. The MX V2 G80-8040 can be used with standard magnetic and chipcard readers as required. Slightly larger than its sister model 7040, the 8040 offers added comfort throughout the range of functions.
| Keyboard |
| Certification |
cURus, VDE GS, c-tick, CE, FCC |
| Built-in memory |
Yes |
| Magnetic card reader |
Yes |
| Smart card reader |
Yes |
| Fingerprint reader |
No |
| Purpose |
Universal |
| USB hub |
No |
| Windows keys |
Yes |
| Keyboard number of keys |
105 |
| Numeric keypad |
Yes |
| Keyboard form factor |
Full-size (100%) |
| Pointing device |
No |
| Keyboard language |
German |
| Keyboard layout |
QWERTZ |
| Keyboard key switch |
Mechanical |
| Device interface |
USB |
| Connectivity technology |
Wired |
| Recommended usage |
Universal |
| Design |
| Surface coloration |
Monochromatic |
| Product colour |
Black |
| Wrist rest |
No |
| Full-size keyboard |
Yes |
| Keyboard style |
Straight |
| Backlight |
No |
| Features |
| Plug and Play |
Yes |
| Cable length |
2.2 m |
| Power |
| Power consumption |
190 mA |
| Power source type |
USB |
| System requirements |
| Linux operating systems supported |
Yes |
| Windows operating systems supported |
Yes |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| General |
| Product family |
MultiBoard |
| Weight & dimensions |
| Keyboard weight |
1.3 kg |
| Keyboard dimensions (WxDxH) |
470 x 220 x 64 mm |
| Packaging data |
| Package type |
Box |
| Package weight |
1.68 kg |
| Package height |
72 mm |
| Package depth |
277 mm |
| Package width |
521 mm |
| Packaging content |
| User guide |
Yes |
| Number of products included |
1 pc(s) |
| Logistics data |
| Master (outer) cases per pallet |
2 pc(s) |
| Products per master (outer) case |
31 pc(s) |
