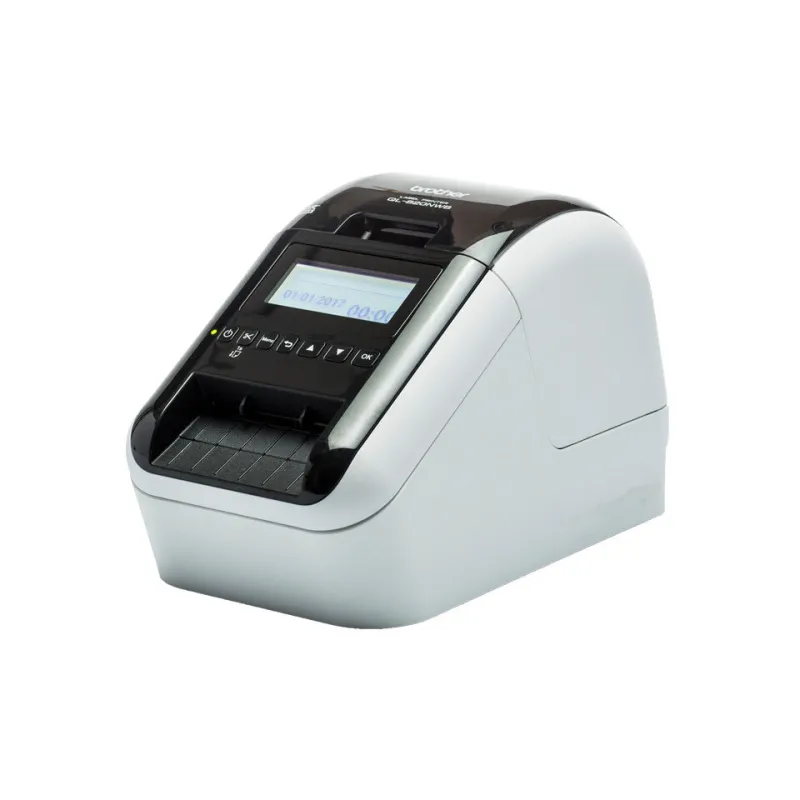

Brother QL-820NWBC label printer Direct thermal Colour 300 x 600 DPI 176 mm/sec Wired & Wireless Ethernet LAN DK Wi-Fi Bluetooth
- Direct thermal
- 300 x 600 DPI
- Colour Printing colours: Black, Red
- Maximum printing width: 6.2 cm Print speed: 176 mm/sec
- Built-in barcodes: CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E
- Connectivity technology: Wired & Wireless
- USB port Ethernet LAN Wi-Fi Bluetooth 2.1+EDR
- Display: LCD Backlight display
- 1.12 kg
| Printing | |
|---|---|
| Text alignment | Center, Left |
| Vertical printing | Yes |
| Minimum print length | 100 cm |
| Maximum print height | 5.8 cm |
| Maximum printing width | 6.2 cm |
| Printing colours | Black, Red |
| Print speed | 110 lpm |
| Maximum resolution | 300 x 600 DPI |
| Colour | Yes |
| Print technology | Direct thermal |
| Paper handling | |
|---|---|
| Maximum label width | 6.2 cm |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Bluetooth version | 2.1+EDR |
| Bluetooth | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Wi-Fi | Yes |
| Ethernet LAN | Yes |
| Connectivity technology | Wired & Wireless |
| Performance | |
|---|---|
| Security algorithms | EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, LEAP, PEAP, WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPA2-TKIP |
| Tape type | DK |
| Number of fonts | 5 |
| Built-in barcodes | CODABAR (NW-7), Code 128 (A/B/C), Code 39, Code 93, Code-39 Library, Data Matrix, EAN128, EAN13, EAN8, GS1 DataBar, GS1 DataBar Expanded, GS1 DataBar Limited, GS1-128, ISBN-2, ISBN-5, ITF, ITF-25, MaxiCode, Micro QR Code, MicroPDF417, PDF417, POSTNET, QR Code, UPC-A, UPC-E |
| Flash memory | 6 MB |
| Page description languages | ESC P, Raster_P |
| Design | |
|---|---|
| Backlight display | Yes |
| Display | LCD |
| Built-in display | Yes |
| Product colour | Black, White |
| Power | |
|---|---|
| Auto power off | Yes |
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery type | Built-in battery |
| System requirements | |
|---|---|
| Linux operating systems supported | Yes |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 10 – 35 °C |
| Operating relative humidity (H-H) | 20 – 80% |
| Weight & dimensions | |
|---|---|
| Weight | 1.12 kg |
| Height | 145 mm |
| Depth | 234 mm |
| Width | 125.3 mm |
| Packaging data | |
|---|---|
| Package weight | 2.62 kg |
| Package height | 232 mm |
| Package depth | 184 mm |
| Package width | 298 mm |
| Packaging content | |
|---|---|
| Bundled software | P-touch Editor 5, P-touch Editor Lite LAN, P-touch Address Book, BR Admin Light |
| AC adapter included | Yes |
| Manual | Yes |
| Cables included | USB |
| Technical details | |
|---|---|
| Sustainability certificates | ENERGY STAR |
