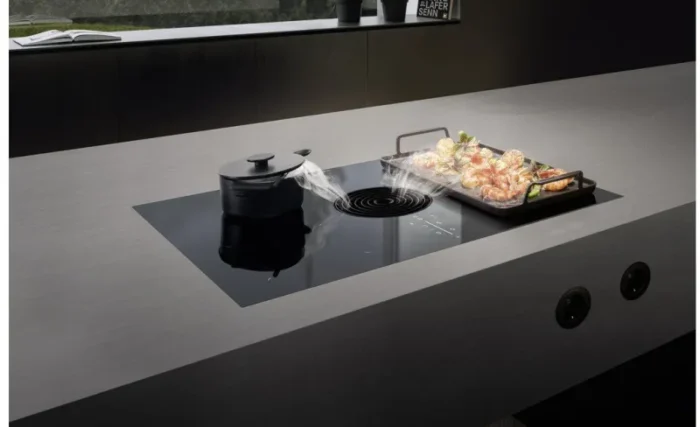

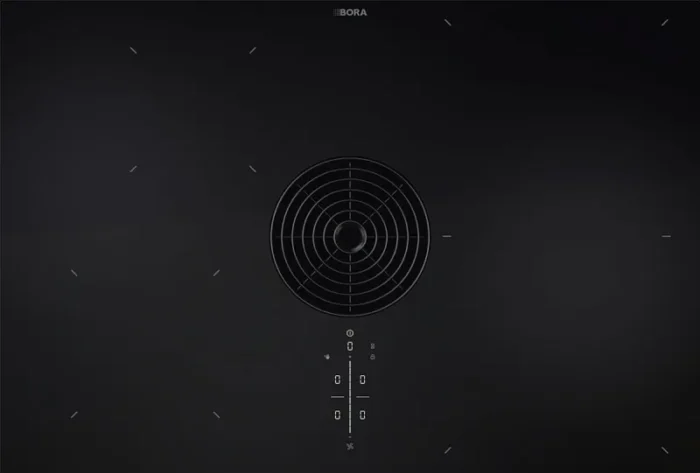

Bora Venting Hob PURMU – Black
Bora PURMU 76cm Wide Venting Hob – Black
Product Overview
- Model: BORA Pure surface/induction cooktop with integrated cooktop extractor – recirculation PURMU
- Type: Induction Cooktop with Integrated Extractor
- Surface Material: Glass Ceramic
- Design: Flush or Surface-Mounted Installation
Cooktop Zones
- Front Left Zone: Ø 210 mm, 2300 W (Power Setting Output 3000 W)
- Rear Left Zone: Ø 175 mm, 1400 W (Power Setting Output 2100 W)
- Front Right Zone: 230 x 230 mm, 2100 W (Power Setting Output 3000 W)
- Rear Right Zone: 230 x 230 mm, 2100 W (Power Setting Output 3000 W)
Performance and Programs
- Cooktop Power Levels: 1 – 9, P
- Extractor Power Levels: 1 – 9, P
- Filter Medium: Activated Charcoal Filter with Ion Exchanger
- Filter Material: Filter Panel with Fine Filter
- Maximum Filter Service Life: 150 Hours (1 Year)
Features
- Controls: Intuitive sControl, White
- eSwap – Easy Filter Change
- Effective Odour Removal
- Oversized Surface Induction Cooking Zones
- Automatic Bridging Function
- Integrated Grease Drip Pan
- Maximum Storage Space
- Automatic Extractor Control
Installation and Accessories
- Installation Type: Flush or Surface-Mounted
- Maintenance: Removable Drawers/Shelves for Cleaning
Available Accessories
- Air inlet nozzle black PUED
- Air inlet nozzle greige PUEDG
- Air inlet nozzle red PUEDR
- Air inlet nozzle jade green PUEDJ
- Air inlet nozzle orange PUEDO
- Air inlet nozzle blue PUEDB
- Stainless steel grease filter PUEF
- Activated charcoal filter PUAKF
- UDB25 sealing tape
- BKR760 cooktop frame
- Air purification box telescopic pull-out PULBTA
- Surface induction grill pan KWGPFI
Technical Data
- Voltage: 220-240 V (Single-phase), 380-415 V (Multiphase)
- Frequency: 50; 60 Hz
- Connection Rating: 7600 W
- Fuse Protection: 10 A
- EAN Code: 4251731215942
- Dimensions (WxDxH): 760 x 515 x 199 mm
- Weight (Including Accessories/Packaging): 23.6 kg
Product And Planning Instructions
- The power supply cable must be provided at the installation site
- Front power socket
- The air purification box is fitted with a telescopic pull-out (extension to 80 mm)
- for connection to the back wall of the unit
- The telescopic extension of the air purification box in extra-deep cooktop base
- cabinets can be extended by 105 mm with an additional telescopic extension PULBTA (available as accessory)
- Ensure sufficient ventilation of the area below the cooktop.
- Installation type: flush or surface-mounted
- The drawers and/or shelves in the floor unit must be removable for
- maintenance and cleaning purposes
- Please note that induction-compatible cookware must be used on induction cooktops
- The cooktop extractor system can be combined with all BORA sockets
