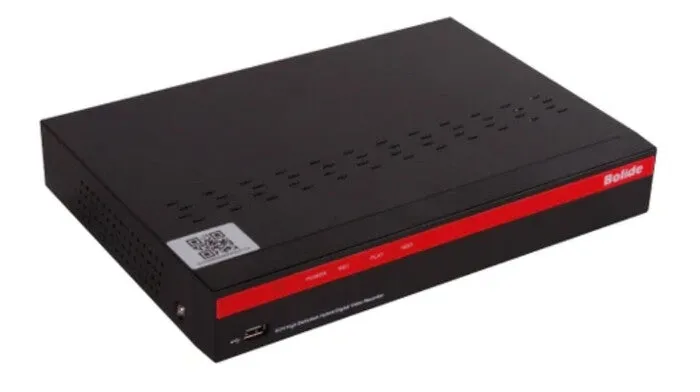

Bolide SVR9508H/NDAA digital video recorder (DVR) Black
- 4K / 5MP Resolution
- NDAA Compliant
- Hybrid DVR – Additional IP Channels
- 1 HDD Bay Up to 12TB
- 1 HDMI, 1 VGA Outputs
- Built-in Video Analytics
- Bolide QuickConnect Enabled
- iPac AI Enabled
| Performance |
| Product colour |
Black |
| Channels quantity |
8 channels |
| Playback modes |
Fast Backward, Fast forward, Slow backward, Slow forward |
| Video streaming |
Yes |
| Audio streaming |
Yes |
| Dual stream support |
Yes |
| Operating system installed |
Embedded LINUX |
| Languages support |
Multi |
| Playback resolutions supported |
8MP（15FPS）5MP（20FPS）4MP/1080P/720P/960H（30FPS）IP 4K/4MP/1080P/720P |
| Maximum frame rate |
120 fps |
| Total bandwidth |
72 Mbit/s |
| Video capturing speed (PAL) |
25 fps |
| Video capturing speed (NTSC) |
30 fps |
| Video capturing speed |
30 fps |
| Video recording trigger modes |
Motion detection |
| Video compression formats |
H.264, H.265 |
| Audio formats supported |
G.711 A-law |
| Maximum video resolution |
3840 x 2160 pixels |
| Ports & interfaces |
| RS-485 ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
1 |
| USB 2.0 ports quantity |
1 |
| Audio input |
4 |
| Audio output |
1 |
| VGA (D-Sub) output ports |
1 |
| HDMI ports quantity |
1 |
| BNC input ports |
8 |
| Video input channels |
8 channels |
| Network |
| Ethernet LAN data rates |
10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports |
1 |
| Ethernet interface type |
Fast Ethernet |
| Ethernet LAN |
Yes |
| Hard drive |
| Supported HDD interfaces |
Serial ATA |
| Maximum HDD capacity |
12 TB |
| Number of HDDs supported |
1 |
| Power |
| Power consumption (max) |
11 W |
| DC current (max) |
2 A |
| DC voltage |
12 V |
| Power supply type |
DC |
| Weight & dimensions |
| Height |
48 mm |
| Depth |
300 mm |
| Width |
201 mm |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Operating relative humidity (H-H) |
0 – 90% |
