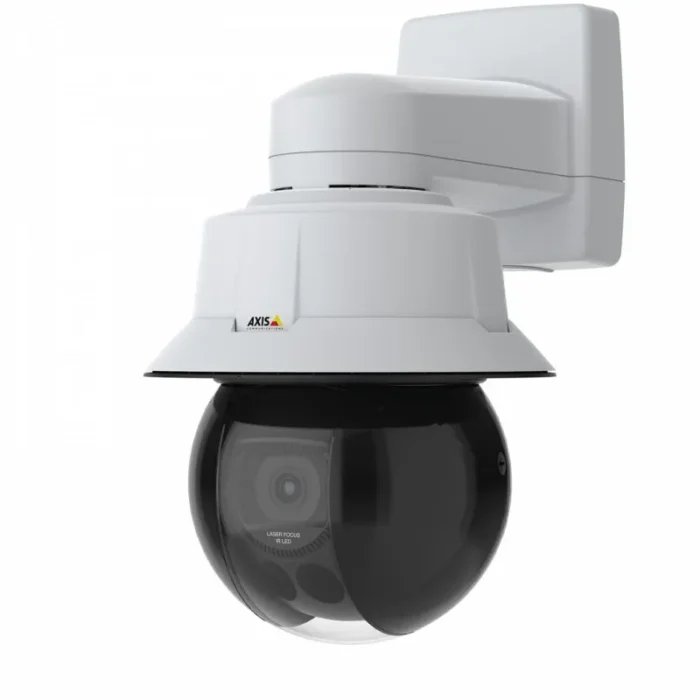

Axis 02446-003 security camera IP security camera Outdoor 3840 x 2160 pixels Wall
- 1/2″ sensor with 31x optical zoom; AXIS Object Analytics, autotracking 2; IR illumination, D/N functionality, Lightfinder 2.0; Laser focus for precise focus; TPM, FIPS 140-2 level 2 certified
AXIS Q6318-LE offers superior 4K UHD resolution. It features IR illumination and day/night functionality for surveillance in pitch darkness. With a built-in laser, 31x optical zoom, you can easily follow fast-moving objects and quick-zoom makes it move from wide to tele view in just 1 second. This high-speed PTZ camera includes orientation aid and autotracking 2 with click and track functionality. AXIS Object Analytics lets you detect and classify humans and vehicles. Furthermore, it includes a Trusted Platform Module (TPM) that’s FIPS 140-2 level 2 certified.
| Performance | |
|---|---|
| Certification | EN 55032 Class A, EN 55035, IEC 62236-4, EN 61000-3-2, EN 61000-3-3, EN 61000-6-1, EN 61000-6-2, FCC Part 15 Subpart B Class A, ICES-3(A)/NMB-3(A), VCCI Class A, RCM AS/NZS CISPR 32 Class A, CISPR 35, EAC, EN 50121-4, KS C 9832 Class A, KS C 9835 |
| Languages support | Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of languages | 19 |
| Processor model | ARTPEC-7 |
| Built-in processor | Yes |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| Tour recording | Yes |
| Auto-tracking | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10 |
| International Protection (IP) code | IP66, IP67 |
| Housing material | Aluminium, Polycarbonate (PC) |
| Product colour | White |
| Mounting type | Wall |
| Camera | |
|---|---|
| Camera shutter speed | 1/8500 – 1/5 s |
| Pan speed | 550 °/sec |
| Tilt speed | 500 °/sec |
| Tilt angle range | -90 – 20° |
| Lens viewing angle, vertical | 34.9° |
| Lens viewing angle, horizontal | 58.5° |
| Minimum illumination | 0.11 lx |
| Camera tilt control | Yes |
| Camera pan control | Yes |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2 mm (1 / 2″) |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Maximum aperture number | 4.6 |
| Minimum aperture number | 1.36 |
| Auto focus | Yes |
| Focal length range | 6.91 – 214.64 mm |
| Digital zoom | 12x |
| Optical zoom | 31x |
| Zoom capability | Yes |
| Night vision | |
|---|---|
| Infra-red wavelength | 850 nm |
| LED type | IR |
| Night vision distance | 200 m |
| Night vision | Yes |
| Video | |
|---|---|
| Privacy masking | Yes |
| Video streaming | Yes |
| Frame rate | 25 fps |
| Video recording | Yes |
| Video compression formats | H.264, H.265, M-JPEG |
| Maximum resolution | 3840 x 2160 pixels |
| Network | |
|---|---|
| Quality of Service (QoS) support | Yes |
| Supported network protocols | IPv4, IPv6 USGv6, ICMPv4/ICMPv6, HTTP, HTTPS, HTTP/2, TLS, QoS Layer 3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, mDNS (Bonjour), UPnP, SNMP v1/v2c/v3 (MIB-II), DNS/DNSv6, DDNS, NTP, NTS, RTSP, RTCP, RTP, SRTP/RTSPS, TCP, UDP, IGMPv1/v2/v3, DHCPv4/v6, ARP, SSH, NTCIP, LLDP, CDP, MQTT v3.1.1, Secure syslog (RFC 3164/5424, UDP/TCP/TLS), Link-Local address (ZeroConf) |
| Networking standards | IEEE 802.1x, IEEE 802.3bt |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 2048 MB |
| Flash memory | 512 MB |
| Compatible memory cards | SD, SDHC, SDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| IP address filtering | Yes |
| HTTPS encryption | Yes |
| Digest authentication | Yes |
| Network access storage (NAS) | Yes |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (max) | 51 W |
| Power consumption (typical) | 17 W |
| AC input voltage | 100 – 240 V |
| Power source type | PoE |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 – 95% |
| Operating relative humidity (H-H) | 10 – 100% |
| Storage temperature (T-T) | -40 – 65 °C |
| Operating temperature (T-T) | -50 – 50 °C |
| Weight & dimensions | |
|---|---|
| Weight | 4.8 kg |
| Diameter | 23.9 cm |
| Height | 261 mm |
| Packaging content | |
|---|---|
| Packaging content | Windows decoder 1-user license, 60 W Midspan (including power cable), IP66 rated network connector, repaint template, paint paper |
| Manual | Yes |
| Number of cameras | 1 |
