Axis 01767-001 security camera Dome IP security camera Outdoor 2304 x 1728 pixels Ceiling/wall
- Anti-ligature, robust (IK11); Compact design – easy to install; Corner camera – no blind spots; WDR and invisible IR (940 nm); Zipstream supporting H.264 and H.265

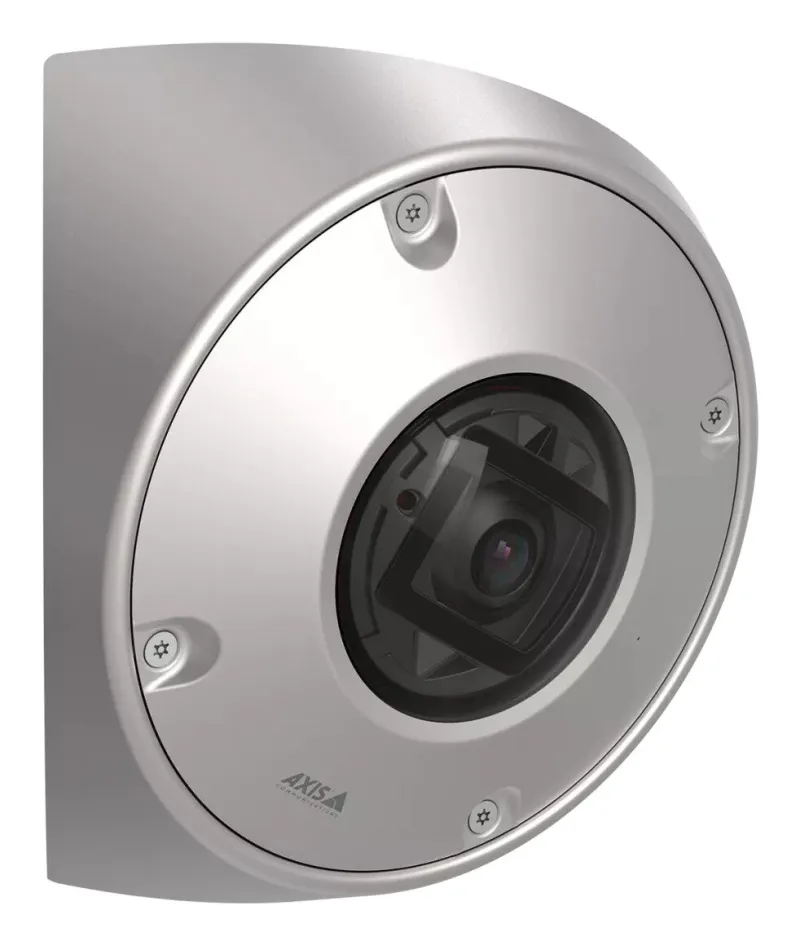

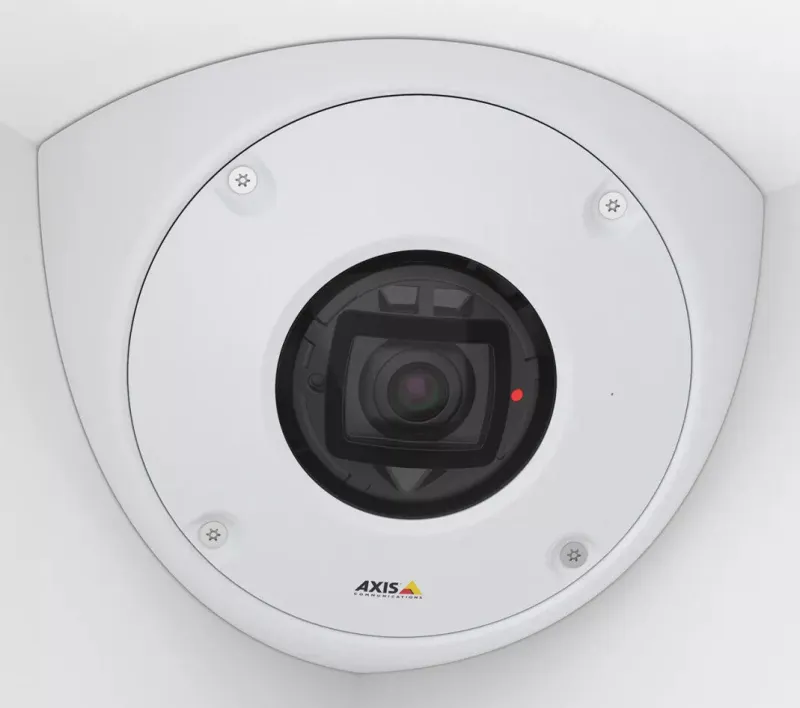

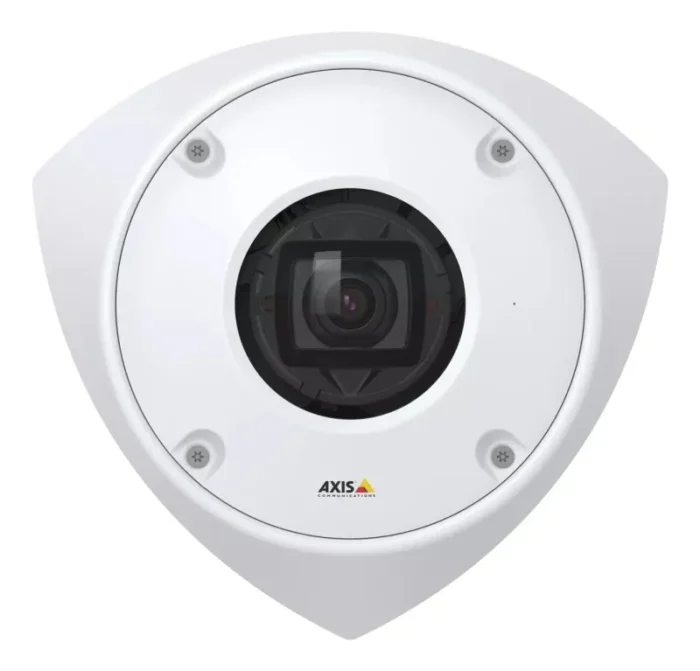

AXIS Q9216-SLV is a compact and robust ligature-resistant (anti-ligature) corner-mount camera that delivers 4 MP video quality. It covers 125 degrees horizontally and 95 degrees vertically, with no blind spots. Featuring invisible IR illumination, it’s ideal for covert video surveillance in complete darkness. With an IK11/IP66 rated casing, it also includes a removable built-in microphone and an indication LED. The camera has polygonal privacy masking, which allows for flexible coverage and helps ensure occupant privacy is respected. Furthermore, signed firmware and a Trusted Platform Module (TPM, FIPS 140-2 level 2 certified) help prevent unauthorized access and safeguard your system.
| Performance | |
|---|---|
| Certification | EN 50130-4, EN 55032 A, EN 55035, IEC/EN 61000-6-1,IEC/EN 61000-6-2, FCC 15 B A,ICES-3(A)/NMB-3(A), VCCI A, KC KN-32 A, KC KN-35, RCM AS/NZS CISPR 32 A, CISPR 24, CISPR 35IEC/EN/UL 62368-1, CAN/CSA C22.2 No. 62368-1, IEC/EN 62471EN 50130–5 I, IEC 60068-2-1, IEC 60068-2-2,IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27,IEC 60068-2-78, IEC/EN 60529 IP66, EN 60529 IP69,ISO 20653 IP6K9K, IEC/EN 62262 IK10+, NEMA 250 4XNIST SP500-267 |
| Infrared (IR) cut-off filter | Yes |
| Day/night mode | Yes |
| Wide Dynamic Range (WDR) | Yes |
| PTZ control | Yes |
| Connectivity technology | Wired |
| Placement supported | Outdoor |
| Type | IP security camera |
| Design | |
|---|---|
| IK code | IK10+ |
| International Protection (IP) code | IP66, IP69, IP69K |
| Housing material | Stainless steel |
| Product colour | White |
| Mounting type | Ceiling/wall |
| Form factor | Dome |
| Camera | |
|---|---|
| Camera shutter speed | 1/32500 – 1/5 s |
| Lens viewing angle, vertical | 95° |
| Lens viewing angle, horizontal | 125° |
| Minimum illumination | 0 lx |
| Camera tilt control | No |
| Camera pan control | No |
| Image sensor | |
|---|---|
| Progressive scan | Yes |
| Optical sensor size | 25.4 / 2.5 mm (1 / 2.5″) |
| Number of sensors | 1 |
| Sensor type | CMOS |
| Lens system | |
|---|---|
| Fixed focal length | 2.4 mm |
| Maximum aperture number | 2 |
| Fixed focus | Yes |
| Number of lenses | 1 |
| Night vision | |
|---|---|
| Infra-red wavelength | 940 nm |
| LED type | IR |
| Night vision distance | 15 m |
| Night vision | Yes |
| Video | |
|---|---|
| Text caption overlay | Yes |
| Image quality adjustment | Brightness, Contrast, Saturation, Sharpness |
| Bit rate control | Variable Bit Rate (VBR) |
| Video streaming | Yes |
| Frame rate | 30 fps |
| Supported graphics resolutions | 320 x 240, 2304 x 1728 |
| Video compression formats | AVC, H.264, H.265, HEVC, M-JPEG |
| Maximum resolution | 2304 x 1728 pixels |
| Audio | |
|---|---|
| Voice codecs | G.711, G.726, OPUS |
| Built-in microphone | Yes |
| Sample rate | 48 kHz |
| Audio system full duplex | Yes |
| Audio system | 2-way |
| Network | |
|---|---|
| Supported network protocols | IPv4,IPv6 USGv6, HTTP, HTTPS , SSL/TLS , QoS L3 DiffServ, FTP, SFTP, CIFS/SMB, SMTP, Bonjour, UPnP , SNMP v1/v2c/v3(MIB-II), DNS, DynDNS, NTP, RTSP, RTP, SFTP, TCP, UDP, IGMP, RTCP, ICMP, DHCP, ARP, SOCKS, SSH, LLDP, SIP |
| Networking standards | IEEE 802.1x, IEEE 802.3af, IEEE 802.3at |
| Ethernet interface type | Fast Ethernet |
| Bluetooth | No |
| Wi-Fi | No |
| Ethernet LAN | Yes |
| Storage | |
|---|---|
| Internal memory | 1024 MB |
| Flash memory | 512 MB |
| Compatible memory cards | MicroSD (TransFlash), MicroSDHC, MicroSDXC |
| Card reader integrated | Yes |
| Built-in HDD | No |
| Ports & interfaces | |
|---|---|
| Terminal block port | Yes |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| Video motion detection | Yes |
| HTTPS encryption | Yes |
| Security algorithms | EAP-TLS, FIPS 140-2 |
| Password protection | Yes |
| Power | |
|---|---|
| Power consumption (max) | 10.8 W |
| Power consumption (typical) | 4.7 W |
| Power source type | PoE |
| Weight & dimensions | |
|---|---|
| Weight | 1.6 kg |
| Height | 131 mm |
| Depth | 176 mm |
| Width | 209 mm |
| Packaging content | |
|---|---|
| Number of cameras | 1 |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85258900 |
