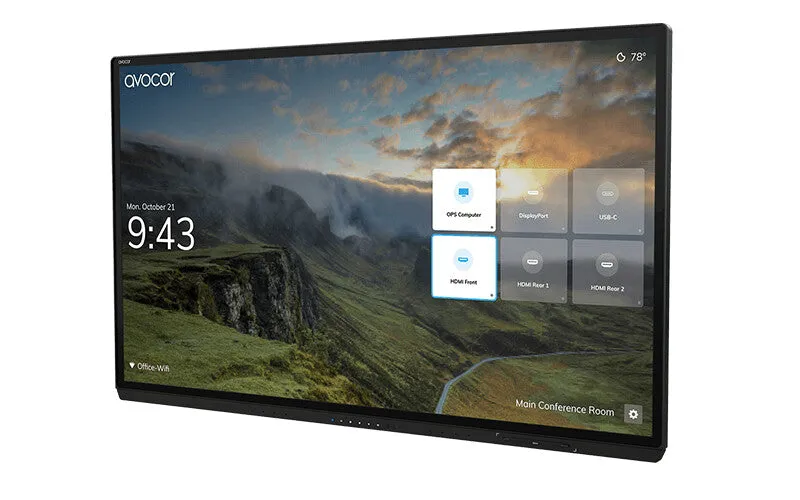

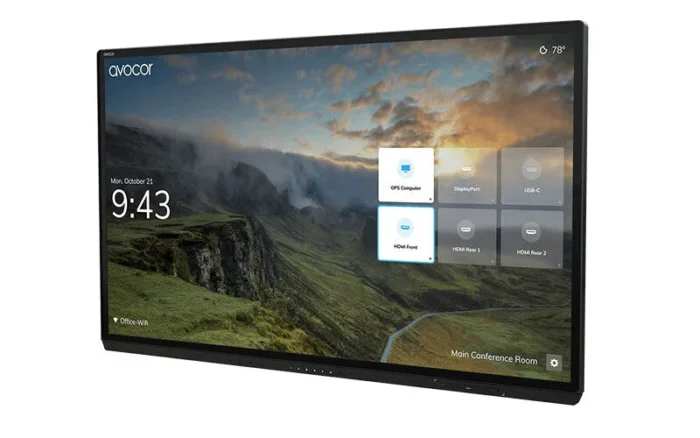

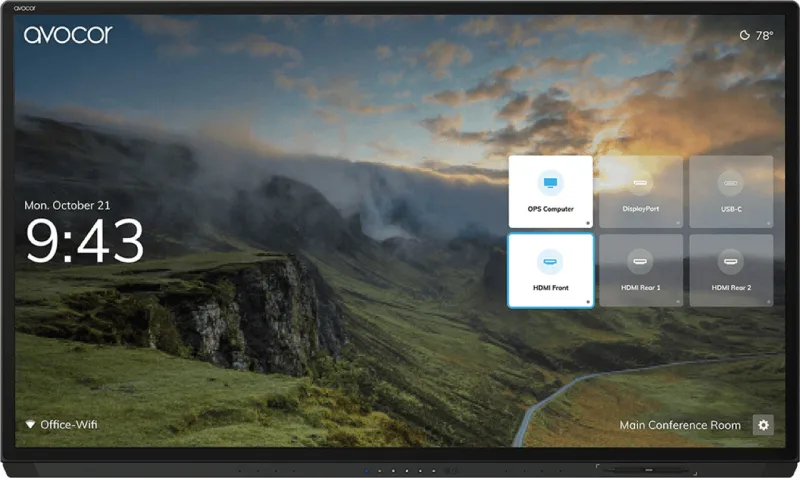

Avocor AVG-6560 G-Series – 65″ 4K InGlass™ LED Interactive Display
- 4K Ultra HD
- 16:9 aspect ratio
- Sleek design with an ultra-thin Bezel
- InGlass technology supporting palm rejection and 4 passive styluses
- Zero parallax optically bonded glass surface for pixel-perfect inking
- Presence Detection Sensor
- Single Type-C connectivity delivering audio, video, touch, Ethernet and power
- Intel OPS PC slot for expanded functionality
- Avocor UiQ – smart touch enabled dynamic user interface
- FUSE – Remote management software platform for AV/IT Managers
The Avocor G series is a range of sleek, bezel-less, edge-to-edge interactive displays designed to streamline workplace collaboration. These crystalclear 4K collaboration displays use the latest InGlassTM technology combined with bonded glass to deliver ultra-fast touch performance, supporting up to 20 individual touch points and 4 passive styluses. The G series also provides a 40W crystal-clear audio experience with built-in active microphones. The result is a pixel-perfect user experience and high performance.
Available in stunning 65”, 75”, and 85” sizes, the G series collaboration displays give users an intuitive and interactive experience for participants in the room and meeting equity for those who are remote.
| Display |
| Pen & touch differentiation |
Yes |
| Palm rejection |
Yes |
| Palm erase |
Yes |
| Screen glass thickness |
3 mm |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Number of simultaneous touchpoints |
20 |
| Touch technology |
Multi-touch |
| Touchscreen |
Yes |
| Maximum refresh rate |
60 Hz |
| Response time |
9.5 ms |
| Contrast ratio (typical) |
5000:1 |
| Native aspect ratio |
16:9 |
| LED backlighting type |
Direct-lit LED |
| Panel type |
LCD |
| LED backlight |
Yes |
| HD type |
4K Ultra HD |
| Anti-glare screen |
Yes |
| Display resolution |
3840 x 2160 pixels |
| Display brightness |
500 cd/m² |
| Display diagonal |
165.1 cm (65″) |
| Audio |
| Number of microphone arrays |
4 |
| Built-in microphone |
Yes |
| Speaker power |
10 W |
| Number of built-in speakers |
4 |
| Built-in speaker(s) |
Yes |
| Network |
| Wake-on-LAN ready |
Yes |
| Ethernet LAN |
Yes |
| Wi-Fi |
No |
| Ports & interfaces |
| RS-232 ports |
1 |
| Audio output |
1 |
| S/PDIF out port |
Yes |
| OPS slot |
1 |
| Line-out |
Yes |
| Ethernet LAN (RJ-45) ports |
2 |
| DisplayPorts quantity |
1 |
| DisplayPort version |
1.2 |
| USB Power Delivery up to |
60 W |
| USB Power Delivery (USB PD) |
Yes |
| USB Type-C DisplayPort Alternate Mode |
Yes |
| HDMI output ports quantity |
1 |
| HDMI version |
2.0 |
| USB Type-C ports quantity |
1 |
| HDMI ports quantity |
2 |
| USB connector type |
USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-A hub ports quantity |
5 |
| USB 2.0 Type-B Touch ports quantity |
3 |
| HDCP version |
2.2 |
| HDCP |
Yes |
| Ergonomics |
| Fanless |
Yes |
| Wall mountable |
Yes |
| Panel mounting interface |
400 x 400 mm |
| VESA mounting |
Yes |
| Product colour |
Brushed steel |
| Performance |
| Proximity sensor |
Yes |
| Ambient light sensor |
Yes |
| Power |
| AC input voltage |
100 – 240 V |
| AC input frequency |
50 – 60 Hz |
| Power consumption (standby) |
0.5 W |
| Power consumption (max) |
335 W |
| System requirements |
| Linux operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Windows operating systems supported |
Windows 10, Windows 11, Windows 8 |
| Operational conditions |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
20 – 85% |
| Operating temperature (T-T) |
0 – 40 °C |
| Weight & dimensions |
| Weight |
56 kg |
| Height |
884.4 mm |
| Depth |
116 mm |
| Width |
1481.4 mm |
| Packaging data |
| Quantity per pack |
1 pc(s) |
| Package weight |
75.5 kg |
| Package height |
1156 mm |
| Package depth |
253 mm |
| Package width |
1672 mm |
| Packaging content |
| Stylus tip diameter |
3 mm |
| Number of stylus pens |
2 |
| Stylus pen type |
Passive |
| Stylus included |
Yes |
| Remote control included |
Yes |
| Batteries included |
Yes |
| Quick start guide |
Yes |
| Cables included |
HDMI, Power, USB Type-A to USB Type-B, USB Type-C to USB Type-C |
| USB cable length |
3 m |
| Other features |
| Country of origin |
Taiwan |
| Warranty period |
3 year(s) |
