ATEN HDMI Audio/Video Extender + IR + RS232 over one Fiber (600m)
- Extends the transmission range of HDMI, IR and RS-232 signals using one fiber optic cable
- Very long distance transmission – up to 600m
- HDMI (3D, Deep Color), HDCP compatible – signaling rates up to 3.125 Gbits
- Superior video quality – up to 1080p@60Hz
- Supports full frequency IR signal from 30KHz to 60KHz
- (The IR receiver cable included with the package only supports 30 KHz to 56 KHz)
- Uses one fiber optic cable to connect the local and remote units
- Supports wide screen formats
- Built-in 8KV/15KV ESD protection
- Features RS-232 serial port for connecting peripherals such as touch screens, barcode scanners, etc
- Supports bi-directional IR signal transmission, one way at a time
- Rack-mountable
- Hot-pluggable

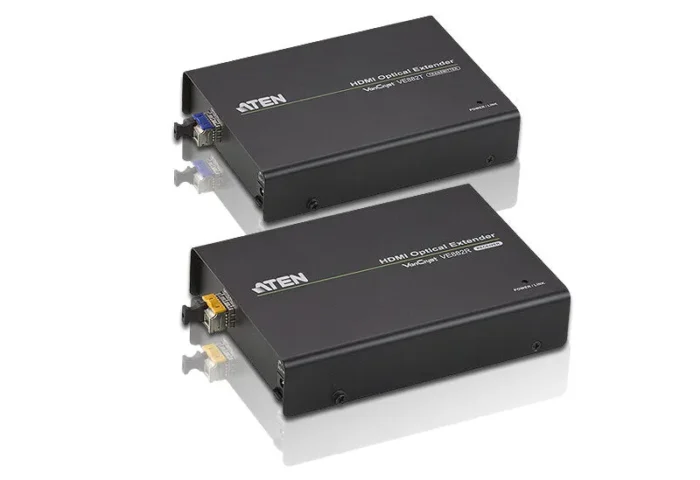

The VE882 is an Optical HDMI Extender that overcomes the length restriction of standard HDMI cables by using optical fiber to send high definition audio and video signals over large distances.
1x VE882T
1x VE882R
1x 2XRT-0004G IR Transmitter
1x 2XRT-0003G IR Receiver
1x Mounting Kit
2x 0AD8-1605-24M1 Power Adapters
1x User Instructions
| Features |
| Product colour |
Black |
| Rack mounting |
Yes |
| Supported video modes |
1080p |
| HDCP |
Yes |
| HDCP version |
1.4 |
| 3D |
Yes |
| Impedance |
100 Ω |
| Material |
Metal |
| Bandwidth |
6.75 Gbit/s |
| Electrostatic Discharge (ESD) protection |
Yes |
| Maximum refresh rate |
60 Hz |
| Fiber mode structure |
Multi-mode, Single-mode |
| Maximum transfer distance |
600 m |
| Maximum resolution |
1920 x 1080 pixels |
| Type |
AV transmitter & receiver |
| Ports & interfaces |
| DC-in jack |
Yes |
| Remote (IR) input |
1 |
| Remote (IR) output |
1 |

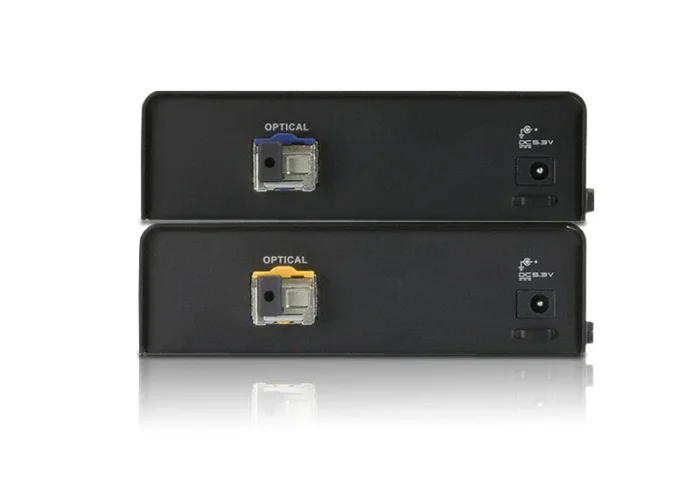

| Fiber optic connector |
SFP |

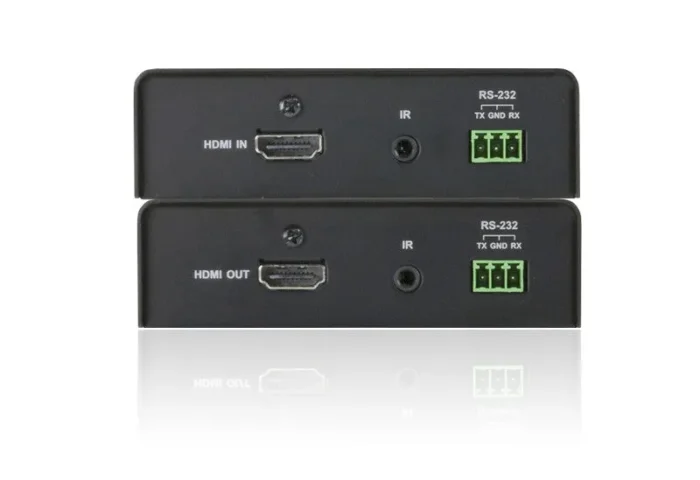

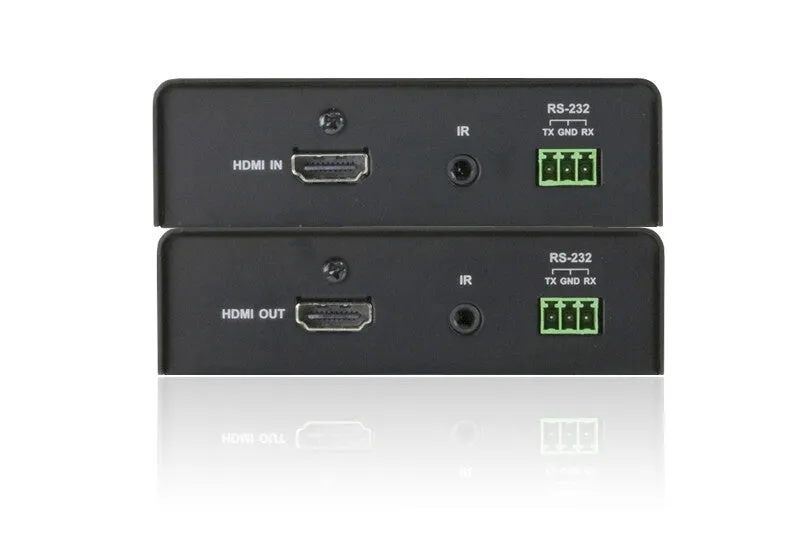

| HDMI in |
1 |
| Number of HDMI outputs |
1 |
| Connectivity technology |
Wired |
| Power |
| Power consumption (RX) |
4.69 W |
| Power consumption (TX) |
5.8 W |
| Operating voltage (receiver) |
5.3 V |
| Operating voltage (transmitter) |
5.3 V |
| Operational conditions |
| Operating temperature (T-T) |
0 – 40 °C |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage relative humidity (H-H) |
0 – 80% |
| Weight & dimensions |
| Transmitter weight |
440 g |
| Transmitter dimensions (WxDxH) |
141.7 x 103 x 30 mm |
| Receiver weight |
440 g |
| Receiver dimensions (WxDxH) |
141.7 x 103 x 30 mm |
| Weight |
1.43 kg |
| Packaging data |
| Package weight |
1.57 kg |
| Package height |
173 mm |
| Package depth |
283 mm |
| Package width |
100 mm |
| Logistics data |
| Products per master (outer) case |
5 pc(s) |
| Master (outer) case net weight |
7.15 kg |
| Master (outer) case gross weight |
8.66 kg |
| Master (outer) case height |
194 mm |
| Master (outer) case length |
517 mm |
| Master (outer) case width |
292 mm |
