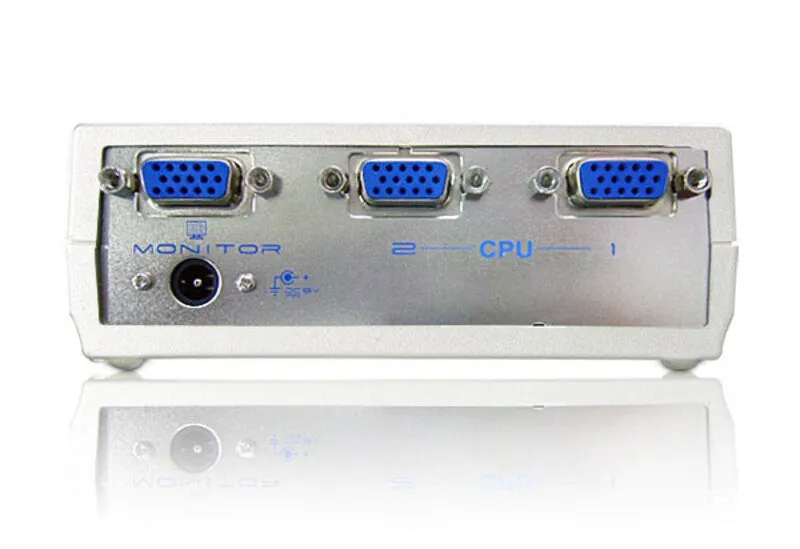

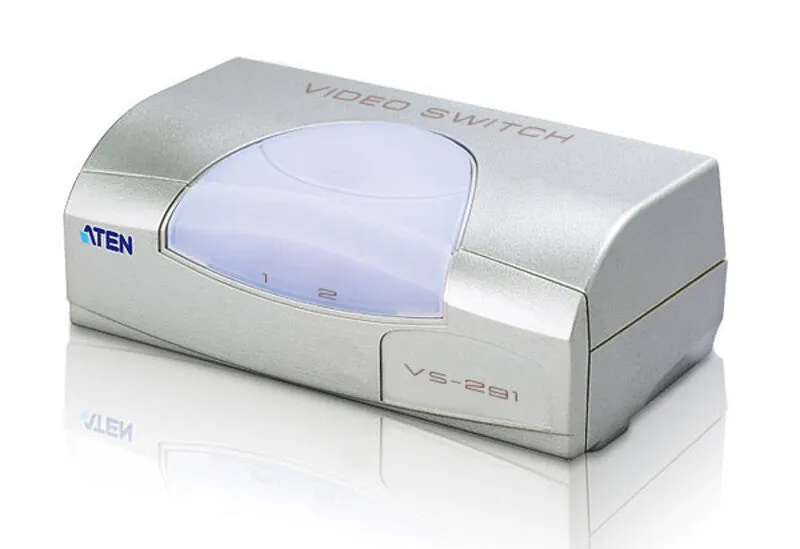

ATEN 2-Port VGA Video Switch
- Displays the video output of two computers on a single monitor or projector
- Computer selection via pushbutton switch
- Electronic switching for greater reliability and durability
- Easy Installation – No Software Required
- Long distance transmission – up to 10m
- High resolution video – up to 1920 x 1440
- DDC, DDC2, DDC2B Compatible
- Supports VGA, XGA. SVGA, UXGA and Multisync monitors
- OS Support: Windows 2000, Windows XP, Linux, Mac and Sun
The VS291 is a video switch with 2 ports. It allows 2 independent computers to display their video outputs on a single monitor. Therefore, users will not need to buy monitors for each computer additionally.
| Ports & interfaces |
| DC-in jack |
Yes |
| VGA (D-Sub) output ports |
1 |
| VGA (D-Sub) input ports |
2 |
| VGA (D-Sub) ports quantity |
3 |
| Video port type |
VGA |
| Features |
| Input impedance |
75 Ω |
| Output impedance |
75 Ω |
| Maximum refresh rate |
60 Hz |
| Supported graphics resolutions |
640 x 480 (VGA), 800 x 600 (SVGA), 1024 x 768 (XGA), 1600 x 1200 (UXGA), 1920 x 1440 |
| LED indicators |
Yes |
| Maximum resolution |
1920 x 1440 pixels |
| Maximum operating distance |
10 m |
| Product colour |
Silver |
| Material |
Metal, Plastic |
| Power |
| Power consumption (typical) |
0.82 W |
| Weight & dimensions |
| Width |
65.2 mm |
| Packaging data |
| Package height |
160 mm |
| Package depth |
239 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
0 – 80% |
| Operating relative humidity (H-H) |
0 – 80% |
| Storage temperature (T-T) |
-20 – 60 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Logistics data |
| Products per master (outer) case |
20 pc(s) |
| Master (outer) case net weight |
4.4 kg |
| Master (outer) case gross weight |
7.9 kg |
| Master (outer) case height |
338 mm |
| Master (outer) case length |
490 mm |
| Master (outer) case width |
315 mm |
| Harmonized System (HS) code |
85176990 |
