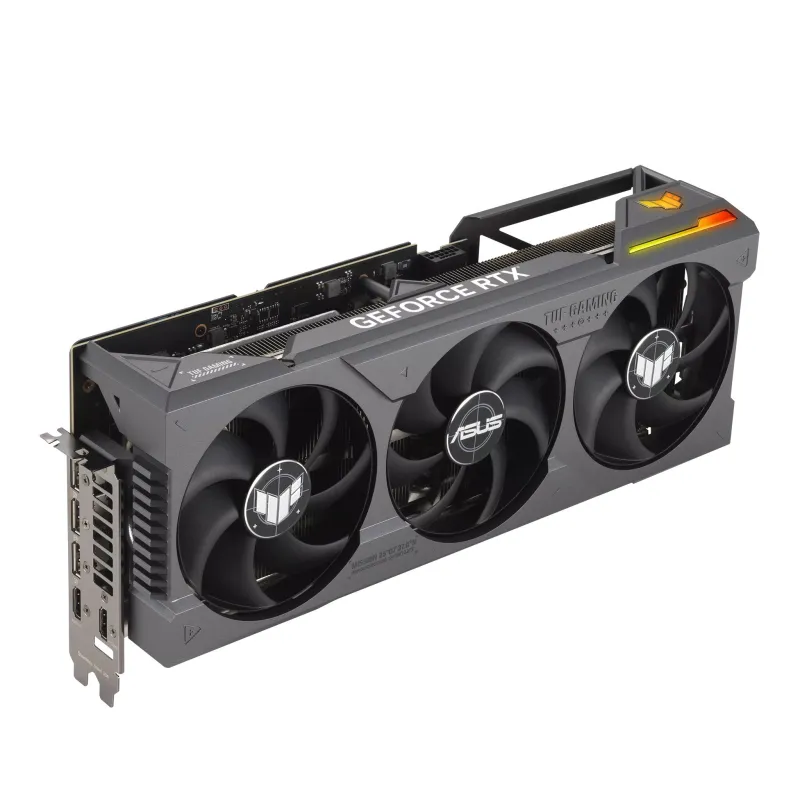

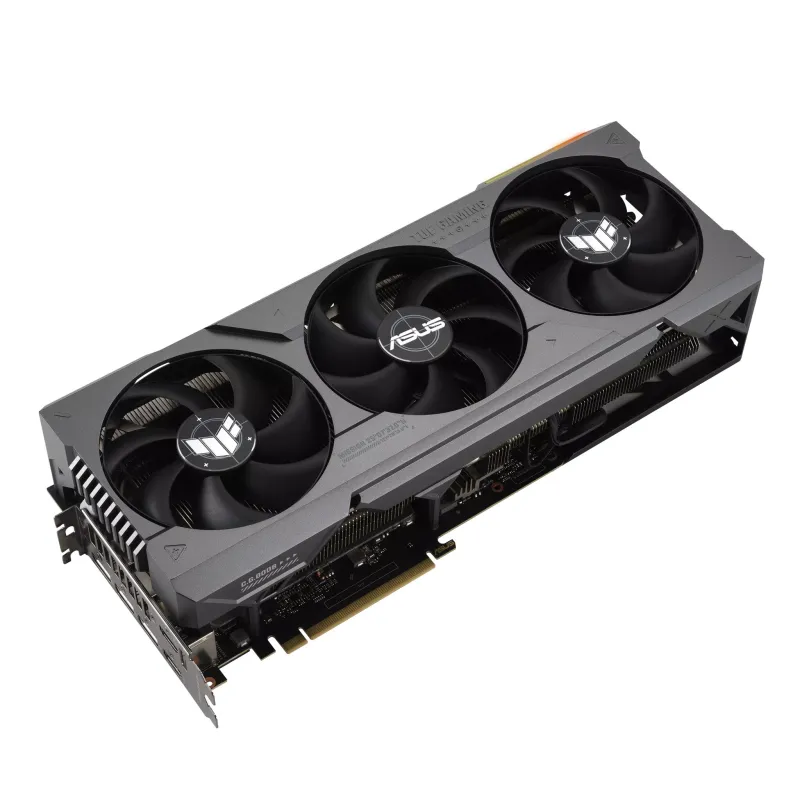

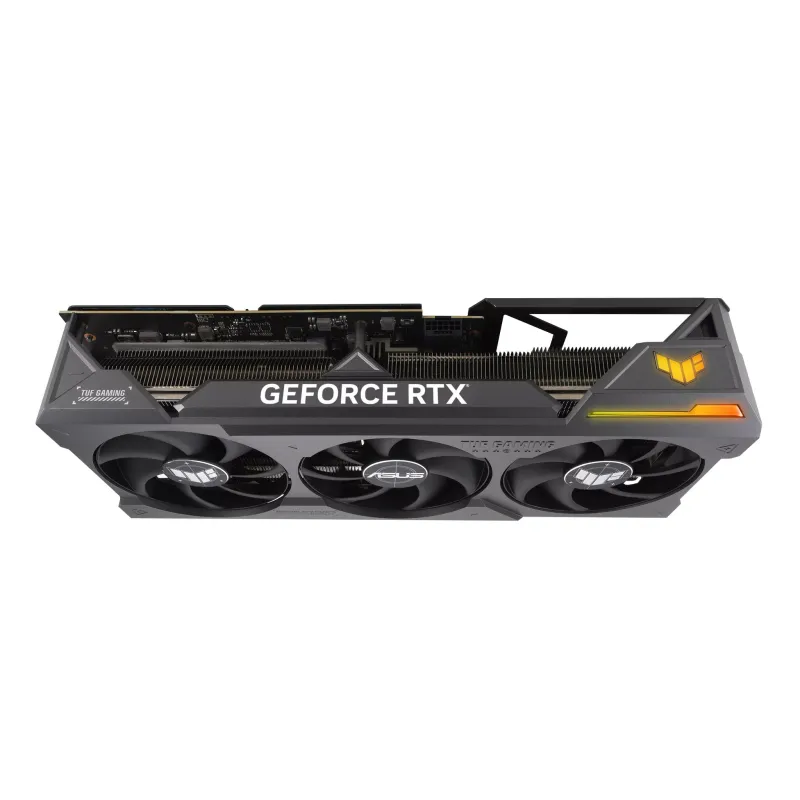

ASUS TUF Gaming TUF-RTX4090-O24G-GAMING NVIDIA GeForce RTX 4090 24 GB GDDR6X
- NVIDIA Ada Lovelace Streaming Multiprocessors: Up to 2x performance and power efficiency
- 4th Generation Tensor Cores: Up to 2X AI performance
- 3rd Generation RT Cores: Up to 2X ray tracing performance
- Axial-tech fans scaled up to deliver 23% more airflow
- Dual Ball Fan Bearings last up to twice as long as conventional designs
- Military-grade Capacitors rated for 20K hours at 105C make the GPU power rail more durable
- Metal Exoskeleton adds structural rigidity and vents to increase heat dissipation
- Auto-Extreme precision automated manufacturing for higher reliability
- GPU Tweak III software provides intuitive performance tweaking, thermal controls, and system monitoring
ASUS TUF Gaming GeForce RTX® 4090 OC Edition 24GB GDDR6X optimized inside and out for lower temps and durability.
ARMED FOR FLOW
The NVIDIA Ada Lovelace architecture elevated by buffed cooling and power delivery,
and backed with an arsenal of rugged reinforcements to cover your six.
Lock, load, and dominate with the TUF Gaming GeForce RTX® 4090.
| Processor |
| Parallel processing technology support |
Not supported |
| Maximum displays per videocard |
4 |
| Processor frequency (OC mode) |
2595 MHz |
| Processor boost clock speed |
2565 MHz |
| CUDA cores |
16384 |
| CUDA |
Yes |
| Maximum resolution |
7680 x 4320 pixels |
| Graphics processor |
GeForce RTX 4090 |
| Graphics processor family |
NVIDIA |
| Memory |
| Data transfer rate |
21 Gbit/s |
| Memory bus |
384 bit |
| Graphics card memory type |
GDDR6X |
| Discrete graphics card memory |
24 GB |
| Ports & interfaces |
| DisplayPort version |
1.4a |
| HDMI version |
2.1a |
| DisplayPorts quantity |
3 |
| HDMI ports quantity |
2 |
| Interface type |
PCI Express 4.0 |
| Performance |
| AMD FreeSync |
No |
| NVIDIA G-SYNC |
Yes |
| Dual Link DVI |
No |
| HDCP |
Yes |
| OpenGL version |
4.6 |
| DirectX version |
12 Ultimate |
| TV tuner integrated |
No |
| Design |
| Product colour |
Grey |
| Illumination |
Yes |
| Illumination colour |
Blue, Green, Red |
| Number of slots |
3.65 |
| Form factor |
Full-Height/Full-Length (FH/FL) |
| Number of fans |
3 fan(s) |
| Cooling type |
Active |
| Power |
| Supplementary power connectors |
1x 16-pin |
| Minimum system power supply |
850 W |
| Weight & dimensions |
| Height |
160 mm |
| Depth |
72.6 mm |
| Length |
348.2 mm |
| Weight |
2.34 kg |
| Packaging data |
| Package type |
Box |
| Package weight |
3.36 kg |
| Package height |
99 mm |
| Package depth |
266 mm |
| Package width |
425.9 mm |
| Packaging content |
| Manual |
Yes |
| General |
| Product family |
TUF Gaming |
