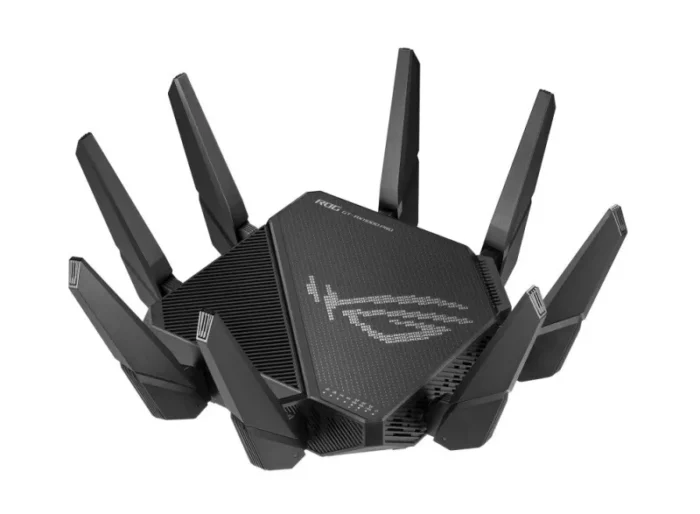

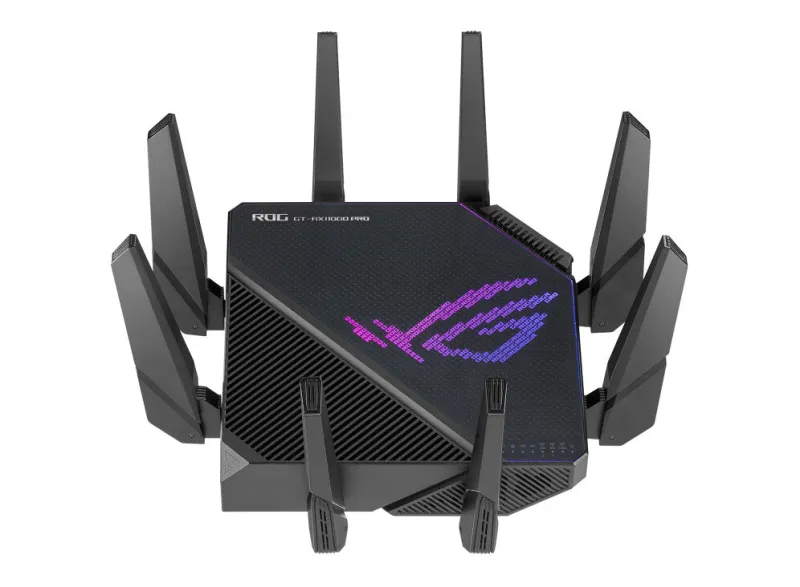

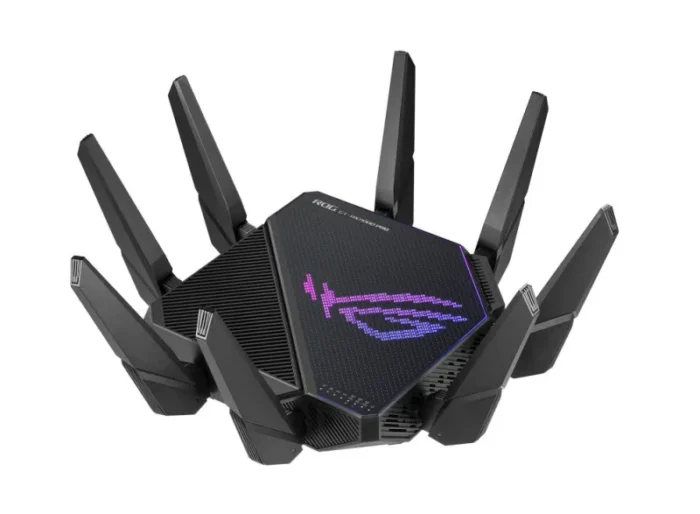

ASUS ROG Rapture GT-AX11000 Pro wireless router Gigabit Ethernet Tri-band (2.4 GHz / 5 GHz / 5 GHz) Black
- Tabletop router Black
- Tri-band (2.4 GHz / 5 GHz / 5 GHz) Wi-Fi 6 (802.11ax) 4804 Mbit/s
- Gigabit Ethernet
- Ethernet WAN
- Ethernet LAN (RJ-45) ports: 5
- USB port
- Quality of Service (QoS) support
GT-AX11000 Pro Tri-Band WiFi 6 gaming router, 2.5G port, 10G port, enhanced hardware, ASUS RangeBoost Plus, 5.9 GHz, Triple-level game acceleration, free network security and AiMesh support
– High-efficiency WiFi 6 – Ultrafast WiFi 6 tri-band boosts speeds up to 11,000 Mbps, with 160 MHz channels for better efficiency and throughput
– Expanded coverage – Exclusive ASUS RangeBoost Plus improves signal range and overall coverage
– Flexible networking ports – One 2.5G port and one 10G port can be configured for either WAN or LAN operation
– Extreme quad-core CPU power – High-performance WiFi chipsets and 64-bit 2.0 GHz quad-core CPU take wireless signal processing to the next level
– Triple-level game acceleration – Online gaming gets network prioritization every step of the way, from PC to game server
– Expanded UNII4 spectrum – Additional high-power 160 MHz channel in 5 GHz increases backhaul capacity of the Mesh network
Primed and ready for battle
The ROG Rapture GT-AX11000 Pro is designed for gamers who want to keep multiple devices connected and still get incredible gaming performance. Enjoy up to eight simultaneous WiFi 6 streams for more video streaming, gaming and browsing for everyone in your home.
Expanded Coverage with RangeBoost Plus
RangeBoost Plus is the latest, most powerful evolution of the renowned and exclusive ASUS collection of wireless network technologies. It includes the next-gen Broadcom WiFi chipset and CPU plus multiple cutting-edge ASUS features to expand signal range and overall coverage by up to 38%*.
Whole-Home coverage
WiFi 6 uses OFDMA technology to deliver increased WiFi signal range and better coverage by dividing each wireless channel into smaller sub-channels. With ASUS AiMesh, you can use a single SSID for your entire home network, with seamless coverage and no more dead zones! It provides you superfast, reliable and secure WiFi connections, you’ll still get fast connection speed at the far end inside or outside your home.
Expanded UNII4 Spectrum
The GT-AX11000 Pro has been upgraded to support an expanded UNII4 spectrum featuring a high-powered 160MHz channel on the 5GHz band. This increases the backhaul capacity of the mesh and improves signal efficiency for roaming and coverage.
| WAN connection | |
|---|---|
| WAN connection type | RJ-45 |
| 3G/4G USB modem compatibility | No |
| SIM card slot | No |
| DSL WAN | No |
| Ethernet WAN | Yes |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (third band) | 4804 Mbit/s |
| WLAN data transfer rate (second band) | 1148 Mbit/s |
| WLAN data transfer rate (first band) | 4804 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rate (max) | 4804 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 5 GHz) |
| Network | |
|---|---|
| VPN Passthrough | Yes |
| Media server | Yes |
| Built-in FTP server | Yes |
| Support Samba (storage) | Yes |
| Number of guest networks (2.4 GHz) | 3 |
| Number of guest networks (5 GHz) | 3 |
| Dynamic DNS (DDNS) | Yes |
| Port forwarding | Yes |
| Port triggering | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB port | Yes |
| Ethernet LAN (RJ-45) ports | 5 |
| Management features | |
|---|---|
| WPS push button | Yes |
| Reset button | Yes |
| Quality of Service (QoS) support | Yes |
| Security | |
|---|---|
| DMZ support | Yes |
| System event log | Yes |
| URL filtering | Yes |
| Access Control List (ACL) | Yes |
| Security algorithms | 64-bit WEP, 128-bit WEP, WPA-Enterprise, WPA-PSK, WPA2-Enterprise, WPA2-PSK, WPS |
| Protocols | |
|---|---|
| Universal Plug and Play (UPnP) | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Design | |
|---|---|
| On/off switch | Yes |
| LED indicators | LAN, Power, USB, WAN, WLAN, WPS |
| Indication light | Yes |
| Product colour | Black |
| Product type | Tabletop router |
| Antenna | |
|---|---|
| Antennas quantity | 8 |
| Antenna design | External |
| Features | |
|---|---|
| Flash memory | 256 MB |
| Internal memory | 1000 MB |
| Processor cores | 4 |
| Processor frequency | 1.8 MHz |
| Built-in processor | Yes |
| Power | |
|---|---|
| Output current | 3.42 A |
| Output voltage | 19 V |
| AC input frequency | 50 – 60 Hz |
| AC input voltage | 110 – 240 V |
| Power source type | DC |
| System requirements | |
|---|---|
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
|---|---|
| Width | 354.9 mm |
| Depth | 354.9 mm |
| Height | 193.2 mm |
| Weight | 2.18 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 3.72 kg |
| Package height | 141 mm |
| Package depth | 396 mm |
| Package width | 401 mm |
