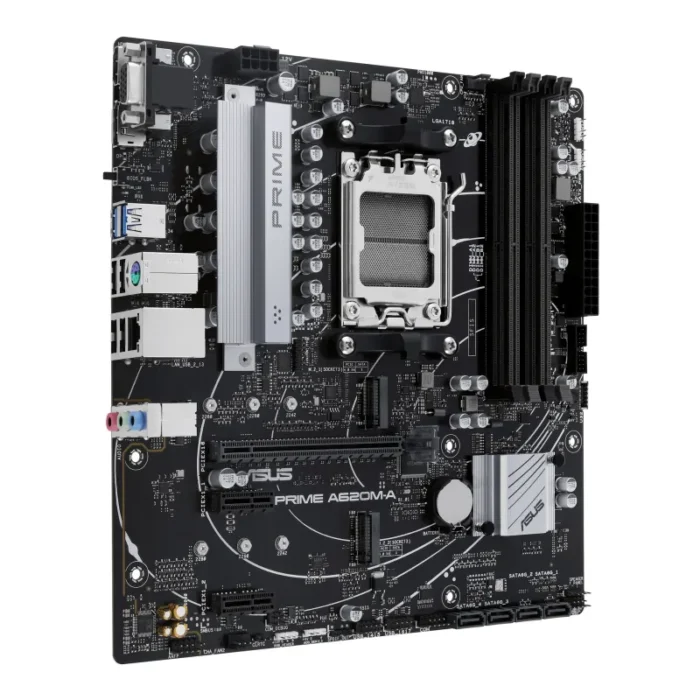

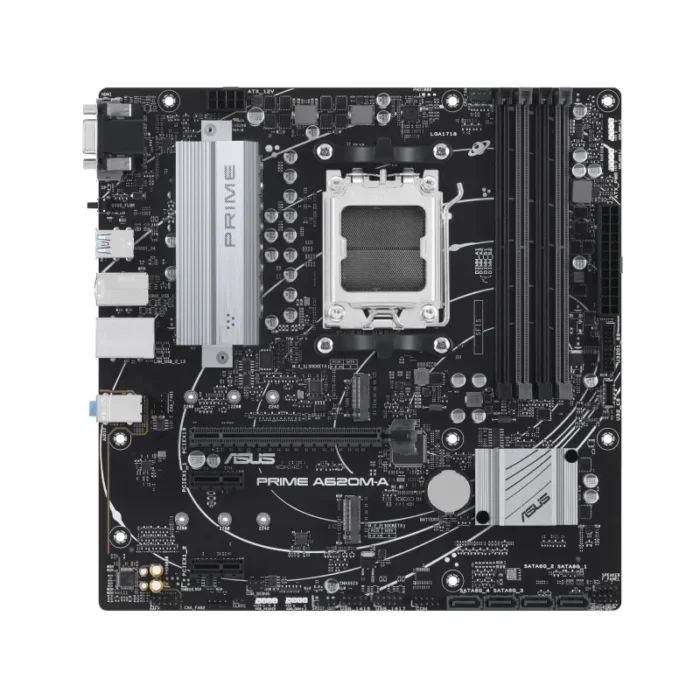

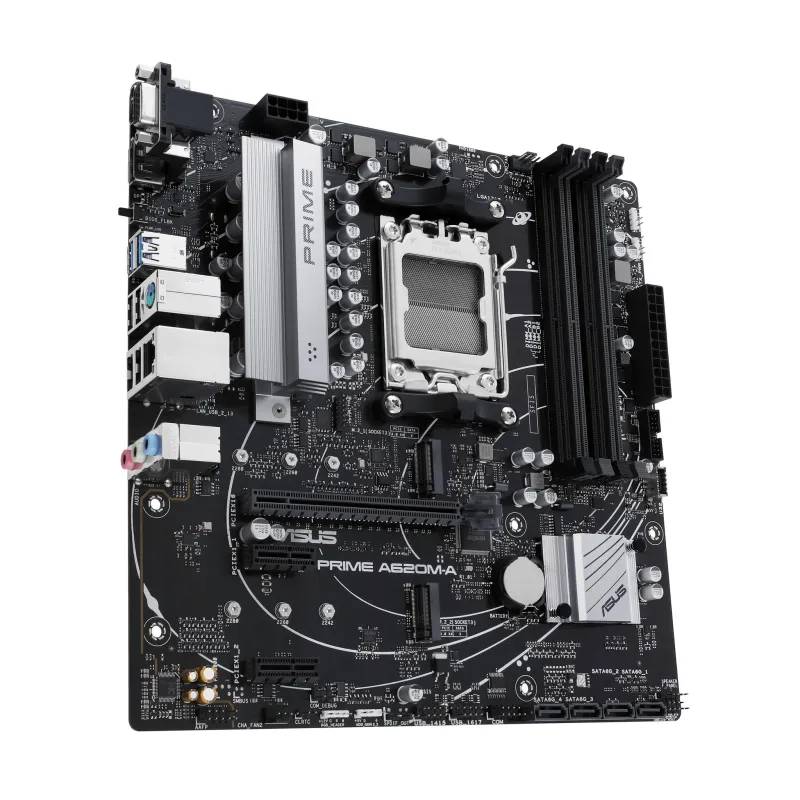

ASUS PRIME A620M-A-CSM AMD A620 Socket AM5 micro ATX

£119.99 Original price was: £119.99.£39.90Current price is: £39.90.

Compare
Add to wishlist
SKU: US-14991852994942 Category: Motherboards
Share:
  • Description
  • Shipping & Delivery
Description

ASUS PRIME A620M-A-CSM AMD A620 Socket AM5 micro ATX

  • AMD Socket AM5 AMD Ryzen 7000 Series
  • PC micro ATX AMD A620 7.1 channels
  • DDR5-SDRAM 4 DIMM Maximum internal memory: 128 GB
  • HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
  • BIOS type: UEFI AMI 256 Mbit
  • Gigabit Ethernet

A620M-A-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of AMD Ryzen 7000-series processors. Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, PRIME A620M-A-CSM provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features.

ASUS Corporate Stable Model
ASUS Corporate Stable Model (CSM) is a commercial program designed to provide stable and reliable motherboards. Offering up to 36-month product lifecycle support and 6-month end-of-life notice to allow sufficient lead times for your organization to get ready for product transitions. Each purchase of an ASUS CSM motherboard comes with ASUS Control Center Express – server-grade IT management software.

* Lifecycle support, program offering and supply status may vary by region. Please consult your local sales representative for more information.

ASUS Control Center Express
ASUS Control Center Express is an integrated IT monitoring and management software designed to deploy faster, simplify IT operations and improve productivity with comprehensive control and user-friendly functions. ASUS Control Center Express is compatible with over 100 ASUS motherboards to provide a high-quality, TCO-optimized solution for your business needs.

Optimize IT endpoint management
Designed to assist IT staff in monitoring and controlling devices within their corporate networks, and facilitate inventory checking in multiple locations remotely

Automate IT maintenance
Allows IT staff to schedule automatic updates of the latest BIOS, software and utilities to specific or all devices at off-peak times, enhancing system stability and IT operational flexibility

Securely manage all of endpoints
Securely manage endpoint configuration, portable storage access and PC software applications by enabling them to create grouping rules on individual devices

FLEXIBILITY
Comprehensive controls form the foundation of the ASUS PRIME series. The PRIME A620 motherboard packs flexible tools to tune every aspect of your system, enabling performance tweaks to perfectly match the way you work to maximize productivity.

UEFI BIOS
The renowned ASUS UEFI BIOS provides everything you need to configure, tweak and tune your system. It offers intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans.

Advanced Tuning for Serious Tweakers
An intuitive Advanced mode offered via the UEFI lets you take complete control. A built-in search feature makes it easy to find options, and various advanced functions let you intelligently make nuanced adjustments so you can dial in performance just the way you want.

Processor
Supported processor sockets Socket AM5
Compatible processor series AMD Ryzen 7000 Series
Processor socket Socket AM5
Processor manufacturer AMD
Memory
Unbuffered memory Yes
Maximum internal memory 128 GB
Supported memory clock speed (max) 6400 MHz
Supported memory clock speeds 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz
ECC сompatibility Non-ECC
Memory channels Dual-channel
Memory slots type DIMM
Number of memory slots 4
Supported memory types DDR5-SDRAM
Storage controllers
RAID levels 0, 1, 10
RAID support Yes
Number of storage drives supported 6
Number of HDDs supported 4
Supported storage drive interfaces M.2, SATA III
Supported storage drive types HDD & SSD
Graphics
Parallel processing technology support Not supported
Internal I/O
RGB LED pin header Yes
Number of COM connectors 1
TPM connector Yes
12V power connector Yes
EPS power connector (8-pin) Yes
Number of chassis fan connectors 2
CPU fan connector Yes
ATX Power connector (24-pin) Yes
Front panel connector Yes
Front panel audio connector Yes
S/PDIF out connector Yes
Number of SATA III connectors 4
USB 3.2 Gen 1 (3.1 Gen 1) connectors 2
USB 2.0 connectors 2
Rear panel I/O ports
Microphone in Yes
Headphone outputs 1
Line-in Yes
DisplayPorts quantity 1
HDMI ports quantity 1
VGA (D-Sub) ports quantity 1
PS/2 ports quantity 1
Ethernet LAN (RJ-45) ports 1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2
USB 2.0 ports quantity 4
Network
Wi-Fi No
Ethernet interface type Gigabit Ethernet
Ethernet LAN Yes
Features
Windows operating systems supported Windows 10 x64, Windows 11
Audio output channels 7.1 channels
Motherboard chipset AMD A620
Motherboard chipset family AMD
Motherboard form factor micro ATX
Component for PC
Expansion slots
Number of M.2 (M) slots 2
PCI Express x16 (Gen 4.x) slots 1
PCI Express x1 (Gen 3.x) slots 2
BIOS
BIOS memory size 256 Mbit
BIOS type UEFI AMI
Packaging data
Package weight 1.36 kg
Package height 67.5 mm
Package depth 275 mm
Package width 275 mm
Weight & dimensions
Height 43 mm
Depth 244 mm
Width 244 mm
Packaging content
Cables included SATA
  • manual pdf
