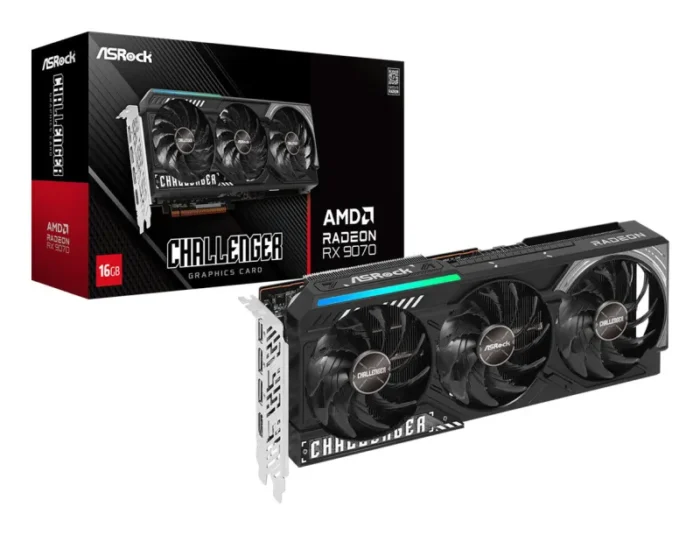

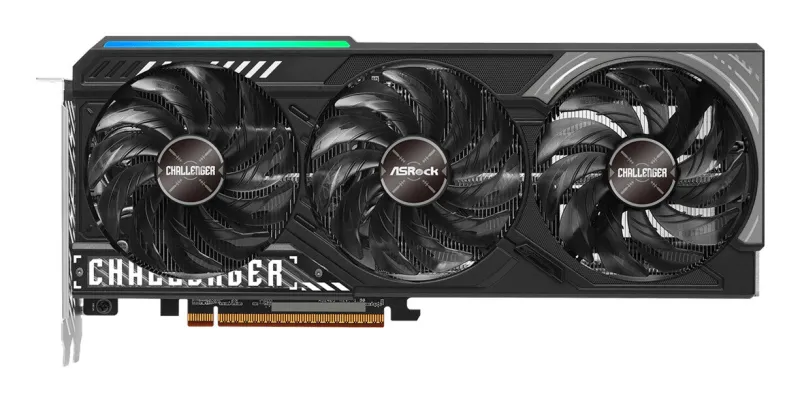

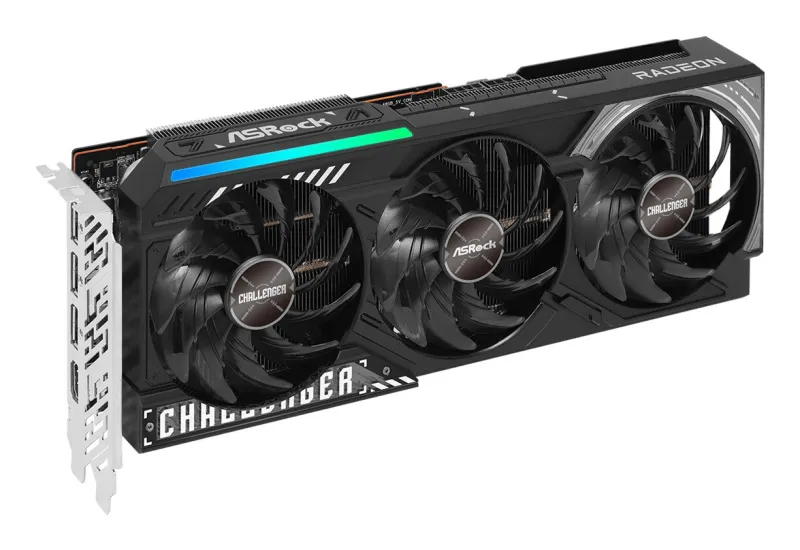

Asrock Challenger Radeon RX 9070 AMD 16 GB GDDR6 Graphics Card
- Triple Fan Design
- Stylish Metal Backplate
- LED Indicator
- LED On/Off Switch
- Striped Axial Fan
- 0DB Silent Cooling
- Ultra-fit Heatpipe
Triple Fan Design
Triple fan design helps to optimize system cooling to reduce the operating temperature.
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
LED Indicator
More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
LED Switch
Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste
Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Striped Axial Fan
Designed For Enhanced Airflow.
ASRock’s custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
0dB Silent Cooling
Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
Ultra-fit Heatpipe
Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
Nickel-plated Copper Base
Maximize GPU Contact Area.
With premium copper base heatsink design, the direct contact area to the GPU would be maximized to improve thermal transfer effectively.
High-density Metal Welding
Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque
Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It’s optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium Power Choke
Compared to traditional chokes, ASRock’s premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
SUPERPOWERED VISUALS ENHANCED WITH AI
Get immersed in the action of lifelike visuals with next-gen raytracing. Play in perfect clarity with higher quality, AI-powered AMD FidelityFX™ Super Resolution 4 image upscaling with advanced frame generation in supported games. Put your skills on full display with enhanced multimedia and streaming experiences with the AMD Radiance Display™ Engine.
FUTURE READY TECH WITH AI
AMD Radeon™ delivers all you need to keep your system feeling fast for years to come. Pair it with AMD Ryzen™ 9000 series processors featuring PCI Express® Gen 5 support and the latest AMD Smart Access Memory™ technology to realize the full performance of your AM5 platform. Harness both Radeon and Ryzen AI-enabled technologies, and upgrade to next generation displays with DisplayPort™ 2.1 support and up to 16GB of video memory to experience AAA games in all their visual glory now and for years to come.
| Processor | |
|---|---|
| Parallel processing technology support | Not supported |
| Stream processors | 3584 |
| Maximum displays per videocard | 4 |
| Processor boost clock speed (Gaming mode) | 2070 MHz |
| Processor boost clock speed | 2520 MHz |
| Compute units | 56 |
| CUDA | No |
| Maximum resolution | 7680 x 4320 pixels |
| Graphics processor | Radeon RX 9070 |
| Graphics processor family | AMD |
| Memory | |
|---|---|
| Data transfer rate | 20 Gbit/s |
| Memory bus | 256 bit |
| Graphics card memory type | GDDR6 |
| Discrete graphics card memory | 16 GB |
| Ports & interfaces | |
|---|---|
| DisplayPort version | 2.1a |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| HDMI ports quantity | 1 |
| Interface type | PCI Express x16 5.0 |
| Performance | |
|---|---|
| Dual Link DVI | No |
| HDCP | Yes |
| OpenGL version | 4.6 |
| DirectX version | 12 Ultimate |
| TV tuner integrated | No |
| Design | |
|---|---|
| Product colour | Black, Grey |
| Illumination | Yes |
| Illumination colour | Multi |
| Bracket height | Full-Height (FH) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of fans | 3 fan(s) |
| Cooling technology | Asrock Striped Axial Fan |
| Cooling type | Active |
| Power | |
|---|---|
| Supplementary power connectors | 2x 8-pin |
| Minimum system power supply | 700 W |
| System requirements | |
|---|---|
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Weight & dimensions | |
|---|---|
| Height | 123 mm |
| Depth | 51 mm |
| Length | 290 mm |
| Weight | 918 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| General | |
|---|---|
| Product family | Challenger |
