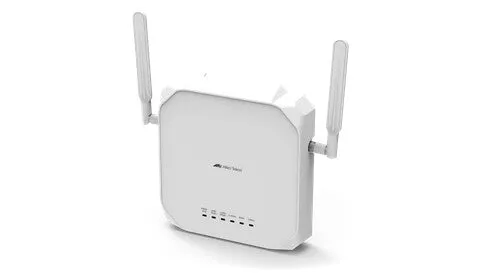

Allied Telesis AT-TQ7403-00 White Power over Ethernet (PoE)
- Operates in standalone, AP-cluster or controlled by AWC controller
- Suitable for a wide range of indoor and outdoor deployments
- Single point of management to all access points
- Equipped with advanced encryption authentication [AES]
- High capacity throughput for demanding applications
- Flexible management—full functionality in either standalone or companion mode
- Quality of Service [QoS] on WLAN
- Multiple-SSIDs and SSID-to-VLAN mapping
- Dynamic VLANs allow VLANs to be assigned on a per-user basis
Enterprise Class Wireless Access Points
Enjoy a high-capacity, reliable wireless network with low operating costs by making your network simple to configure, monitor and manage.
| Features |
| Quality of Service (QoS) support |
Yes |
| Airtime Fairness (ATF) |
Yes |
| Band steering |
Yes |
| Wireless isolation |
Yes |
| Flow control support |
Yes |
| VLAN support |
Yes |
| Fast roaming |
Yes |
| Wi-Fi Multimedia (WMM)/(WME) |
Yes |
| MIMO type |
Multi User MIMO |
| MIMO |
Yes |
| 5 GHz |
Yes |
| 6 GHz |
Yes |
| 2.4 GHz |
Yes |
| Security |
| Remote Authentication Dial-In User Service (RADIUS) |
Yes |
| Auto Wireless Distribution System (WDS) |
Yes |
| MAC address filtering |
Yes |
| Security algorithms |
802.1x RADIUS, SSID, WEP, WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| Protocols |
| Management protocols |
SNMPv1, v2c, v3 |
| DHCP client |
Yes |
| Management features |
| Firmware upgradeable |
Yes |
| Syslog |
Yes |
| Web-based management |
Yes |
| Power |
| Power consumption (max) |
19.4 W |
| Power consumption (typical) |
15 W |
| AC input voltage |
100 – 240 V |
| Power over Ethernet (PoE) |
Yes |
| Design |
| LED indicators |
Yes |
| Cable lock slot type |
Kensington |
| Cable lock slot |
Yes |
| Product colour |
White |
| Placement |
Wall |
| Antenna |
| Antenna type |
External |
| Weight & dimensions |
| Weight |
1.2 kg |
| Height |
45 mm |
| Depth |
210 mm |
| Width |
200 mm |
| Operational conditions |
| Storage relative humidity (H-H) |
5 – 95% |
| Operating altitude |
0 – 3048 m |
| Storage temperature (T-T) |
-25 – 70 °C |
| Operating temperature (T-T) |
0 – 50 °C |
| Operating relative humidity (H-H) |
5 – 90% |
| Logistics data |
| Export Control Classification Number (ECCN) |
5A992C |
