40A EPEVER MPPT & Victron Energy 370W BlueSolar Mono Solar Panel Camper Van Kit
This 370W MPPT solar panel kit provides everything you need to install solar into your van. We’ve done all the hard work for you, working out all the appropriate fusing and cabling to ensure your kit not only lasts a long time, but is safe and reliable.

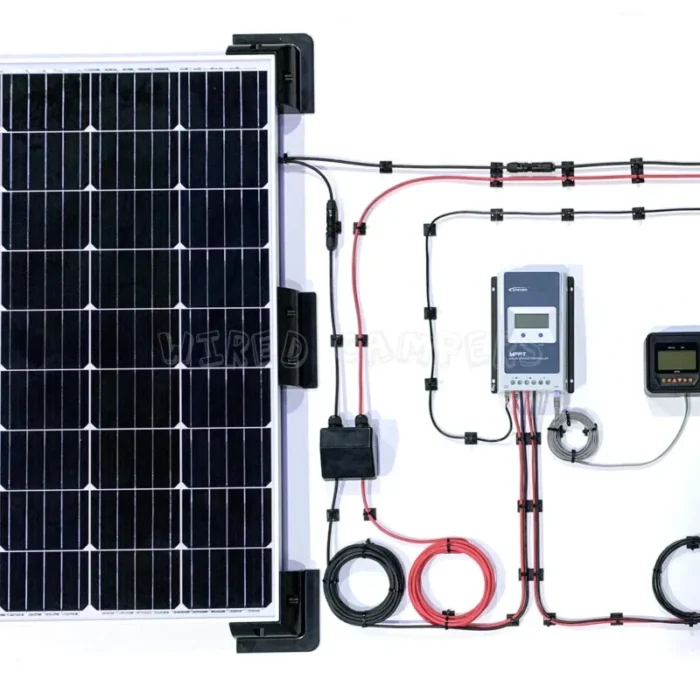

Kit consists of the below items, if you have any questions or would like anymore information please just contact us and we’ll be happy to help you.

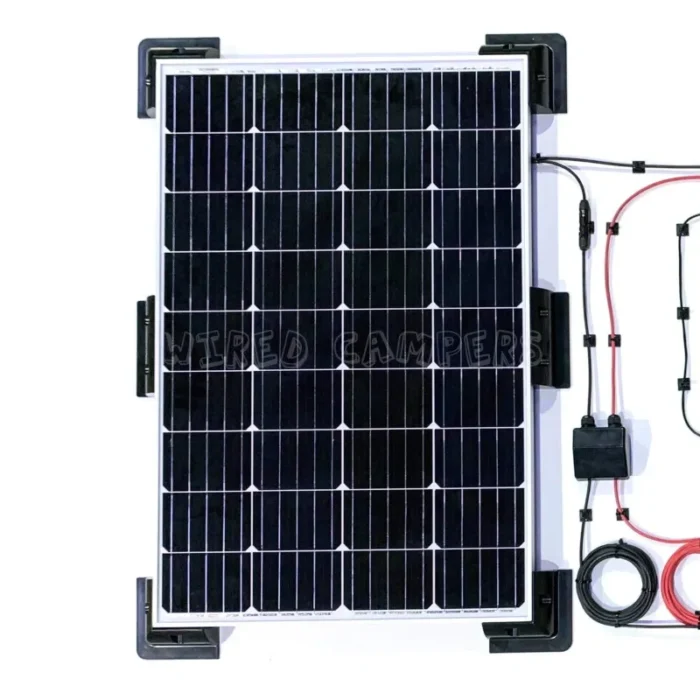

Solar Panel
2 X Victron Energy 185W BlueSolar Mono Solar Panel mounted in a light weight aluminium frame. Approximate size of the panel is 1485MM X 668MM X 30MM. The panel comes fitted with with industry standard MC4 connectors for quick installation.
Solar MPPT Controller
EPEVER EPSOLAR 40A 4210AN Tracer MPPT Controller with built in display. These are what you should be using to get the most out of your solar panel, true MPPT technology provides up to 30% more power than cheap PWM controllers.
Solar Control Panel
EPEVER EPSOLAR MT50 control panel complete with data cable.
Solar Equipment
- Six piece ABS UV resistant roof mounts, available in black or white.
- Cable entry glands and cover, available in black or white.
- MC4 Solar connector.
- Solar fuse and MC4 waterproof holder.
- Battery temperature sensor.
Cables
Wiring from the MPPT controller to the solar panel will be in 6mm2 UV resistant solar cable, available in 3M, 5M, or 10M lengths.
Wiring from the MPPT controller to the battery terminals will be in 16mm2 hi flex cable in a standard length of 3M.
Accessories
- High quality positive and negative battery terminals with PVC covers.
- In line battery fuse and holder.
- Associated heat shrink and terminals to complete the installation.
Please note, this is in kit form so will require assembly (crimping/cutting cables).
