20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 16mm Pipe
Overview

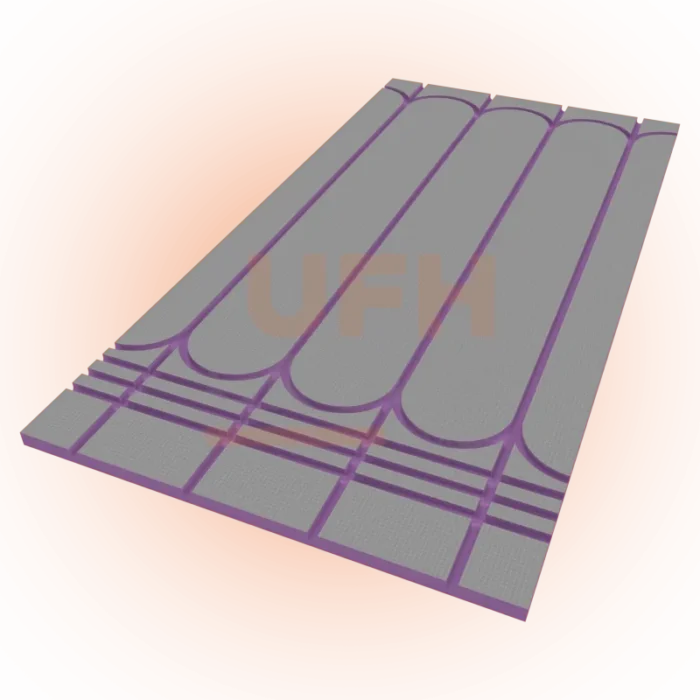

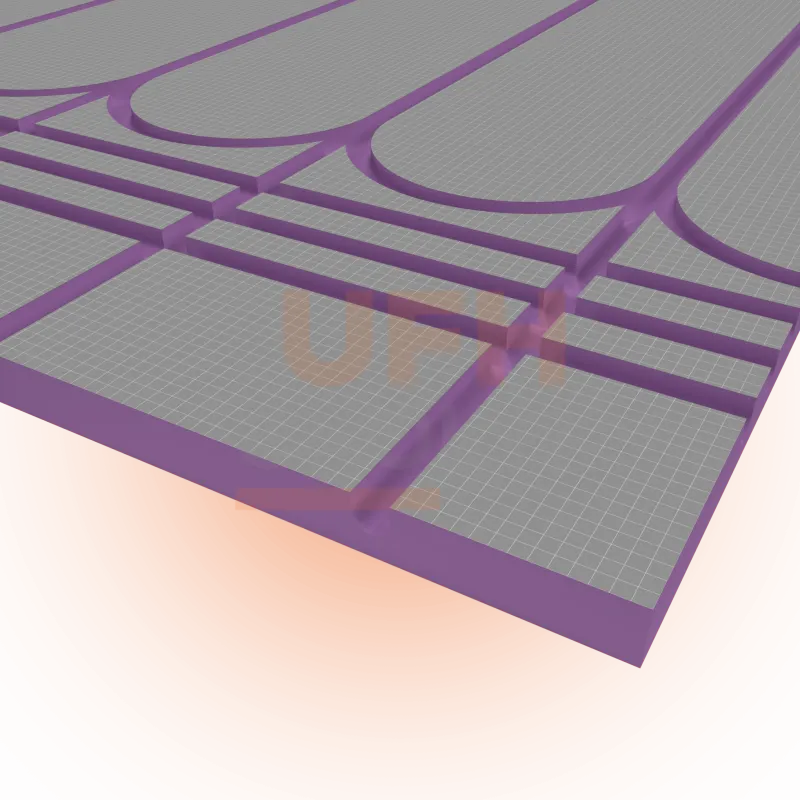

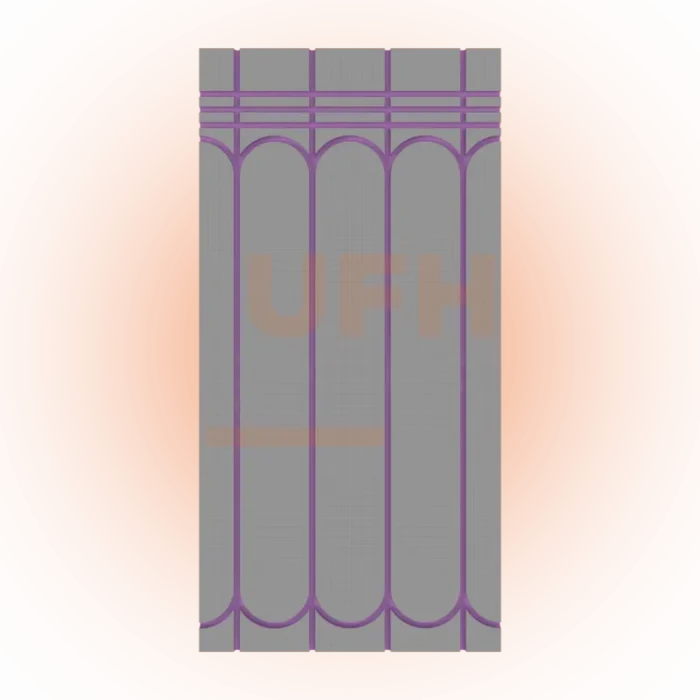

The 20mm Tekwarm Lite Low Profile UFH Board with 150mm pipe spacing is a low-profile, efficient underfloor heating solution designed for both new builds and retrofit applications. With a thickness of just 20mm, these boards provide 300 kPa compressive strength for durability and heat retention. They are grooved to accommodate 16mm diameter heating pipes, providing easy and efficient installation on both timber and concrete subfloors.
Key Features:
- Thickness: 20mm, perfect for low-profile installations.
- Grooved for 16mm Pipes: Ensures quick and easy installation with radius returns for seamless pipe placement.
- Compressive Strength: 300 kPa XPS insulation for durability and efficiency.
- Pipe Spacing: 150mm, ideal for residential heating systems that require moderate heat output.
- Compatible with Timber and Concrete: Easy to install using adhesive or mechanical fixings (depending on the sub-floor).
Key Benefits:
- Fast Installation: A grooved surface ensures quick pipe placement, reducing installation time.
- Low Profile: Ideal for installations where floor height is a concern.
- Energy Efficient: Offers efficient heating with the right insulation and heat retention balance.
Alternative Products:
Looking for a different configuration? Check out the following options:
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 150mm Centre for 12mm Pipe
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centre for 16mm Pipe
- 20mm Tekwarm Lite Low Profile UFH Board | 1200mm x 600mm | 200mm Centre for 12mm Pipe
Product Data Sheet:
Tekwarm Lite Low Profile UFH Board Data Sheet
Recommended Overlay Board:
Tekwarm Overlay Board
